Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E36 325tds (1999)

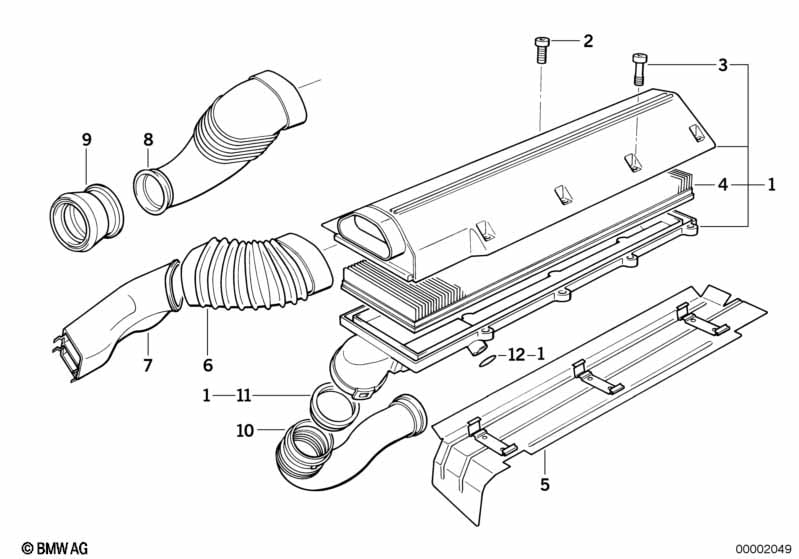

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 01/1996 | 13712246271 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Fillister-head screw | M6X24 | 4 | 09/1993 | 13712244721 | $2.23 | Shop at ECS Tuning | |||
| 03 | Fillister-head screw | M6X24 | 4 | 09/1993 | 13712244721 | $2.23 | Shop at ECS Tuning | |||
| 04 | Air filter element | 1 | 13712246416 | $38.84 | +core | Shop at ECS Tuning | ||||
| 05 | Heat resistant plate | 1 | 01/1996 | 13712246869 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Rubber boot | 1 | 13712244221 | +core | Shop at ECS Tuning | |||||
| 07 | Intake tube | 1 | 13712244222 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Clip | 1 | 13712246173 | Shop at ECS Tuning | ||||||
| 10 | Air hose | 1 | 01/1996 | 13712246288 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L59-66 | 1 | 01/1996 | 07129952125 | $1.64 | Shop at ECS Tuning | |||
| -- | Hose clamp | L77-84 | 1 | 01/1996 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 10 | Air tube | 1 | 13717785825 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 69X6MM | 1 | 01/1996 | 13711710059 | $3.75 | Shop at ECS Tuning | |||
| 12 | O-ring | 19,0X2,5MM | 1 | 11532248435 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
