Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 7 Series E38 750iLP (2001)

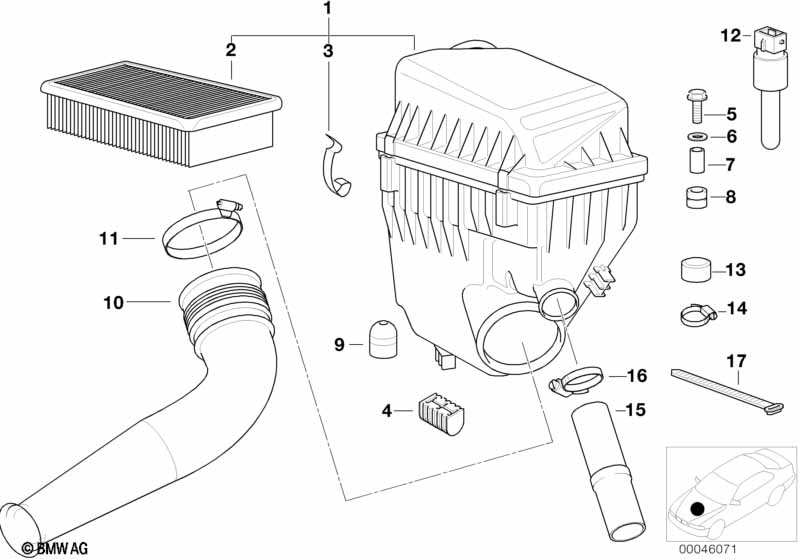

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

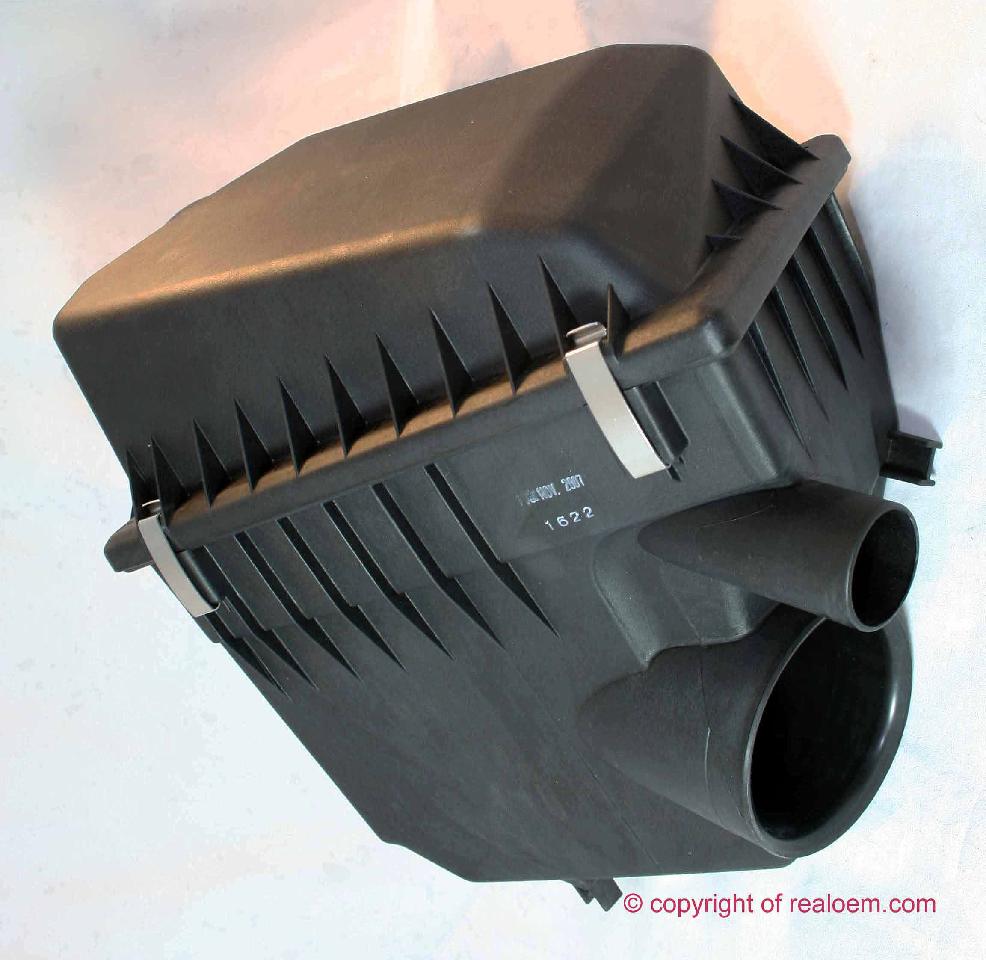

| 01 | Intake muffler left | 1 | 09/1996 | 13711436387 | $245.36 | Shop at ECS Tuning | ||||
| 01 | Intake muffler right | 1 | 09/1996 | 13711436389 | $245.36 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler left | 1 | 09/1996 | 13711436616 | $245.36 | ENDED | Shop at ECS Tuning | |||
| 01 | Intake muffler right | 1 | 09/1996 | 13711436617 | $245.36 | ENDED | Shop at ECS Tuning | |||
| 02 | Air filter element | 2 | 13721702908 | Shop at ECS Tuning | ||||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Air filter element | 2 | 13721742202 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring clip | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 3 | 13711742763 | $2.00 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X35-8.8-ZNS3 | 2 | 09/1995 | 07119902998 | $0.38 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Spacer sleeve | 2 | 13717571982 | $1.93 | Shop at ECS Tuning | |||||
| 08 | Rubber grommet | 2 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 09 | Rubber Mounting | 2 | 13711742762 | $2.57 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CYLINDER 1-6 | ||||||||||
| 10 | Intake manifold | 1 | 09/1995 | 13711427604 | $45.45 | +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO CYLINDER 7-12 | ||||||||||
| 10 | Intake manifold | 1 | 09/1995 | 13711745604 | $45.45 | +core | Shop at ECS Tuning | |||
| 11 | Hose clamp | L95-102 | 2 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SUCTION SILENCER RIGHT |
||||||||||
| 12 | Intake air temperature sensor | 2 | 13629899008 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | O-ring | 8X3 | 2 | 13621743299 | $1.25 | Shop at ECS Tuning | ||||
| 15 | Air hose | 2 | 09/1996 | 13711436388 | $55.43 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L42-48 | 2 | 09/1996 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 17 | Cable tie | L=292MM/B=4,8MM | 4 | 09/1996 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
