Mass air flow sensor for BMW 5 Series E39 528i (1998)

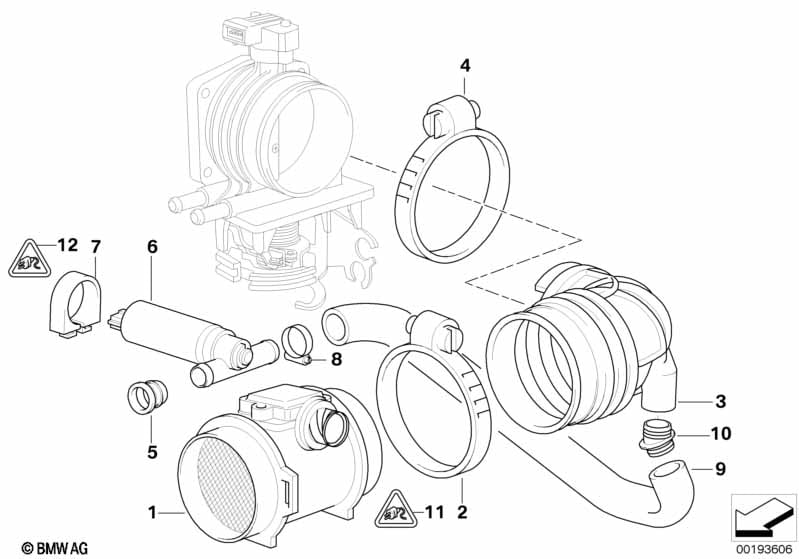

This Mass air flow sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hot-film air mass meter | 4-POL | 1 | 09/1998 | 13621703275 | $402.32 | Shop at ECS Tuning | |||
| 02 | Hose clamp | L83-90 | 1 | 09/1998 | 07129952133 | $1.78 | Shop at ECS Tuning | |||
| 03 | Rubber boot | 1 | 09/1998 | 13541703726 | $28.30 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L77-84 | 1 | 09/1998 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 05 | Rubber grommet | 1 | 09/1998 | 13411733217 | $10.88 | Shop at ECS Tuning | ||||
| 06 | T-shape idle regulating valve | BOSCH | 1 | 09/1998 | 13411744713 | $211.28 | Shop at ECS Tuning | |||
| 07 | Bracket idle adjuster | 1 | 09/1998 | 13411735330 | $2.93 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L32-38 | 1 | 09/1998 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 09 | Hose | 1 | 09/1998 | 13541740159 | $12.08 | Shop at ECS Tuning | ||||
| 10 | Support | 1 | 09/1998 | 13411722944 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Plug housing | 3-POL | 1 | 09/1998 | 12521732597 | $3.47 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Blade terminal contact MDK4 2.8 w. wire | 1,0 MM²/SN | 1 | 09/1998 | 12520007252 | $2.03 | Shop at ECS Tuning | |||
| -- | Blade terminal contact MDK4 2.8 w. wire | 0,5 MM²/ AU | 1 | 09/1998 | 12520007254 | $3.08 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Mass air flow sensor?
- This technical diagram illustrates the Mass air flow sensor within the Fuel preparation system group for the 5 Series E39 528i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Hot-film air mass meter (Part #13621703275).
- Which models use the hardware listed in this Mass air flow sensor?
- The hardware and components featured in the Mass air flow sensor are specific to the 5 Series E39 528i produced during 1998. These technical specifications ensure that parts like the Hot-film air mass meter (13621703275) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mass air flow sensor assembly?
- Each item in the Mass air flow sensor corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Hot-film air mass meter by locating its position on the schematic, which then links to the official BMW part number 13621703275 for the Fuel preparation system section.
