Intake muffler for BMW 5 Series E39 525i (2001)

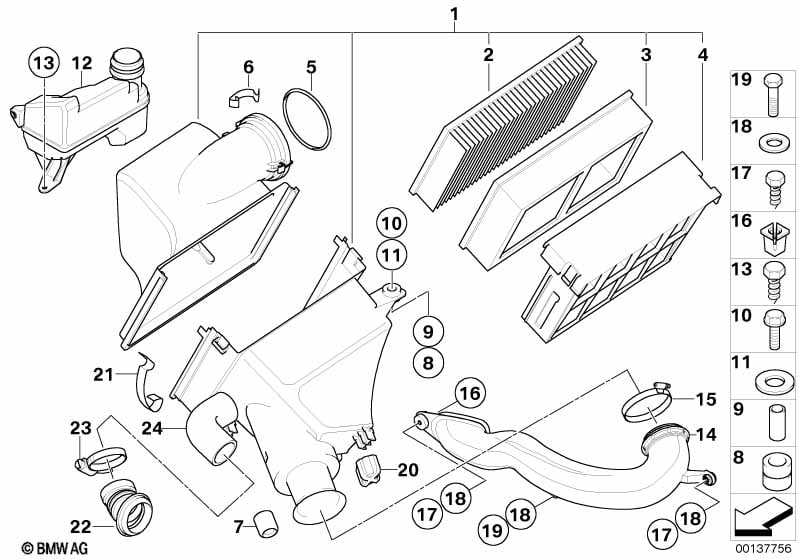

This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/1998 | 13711713637 | $300.56 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1998 | 13711716218 | $300.56 | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| 03 | Frame | KNECHT | 1 | 13711730895 | $22.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Frame | KNECHT | 1 | 13711730896 | $25.07 | Shop at ECS Tuning | ||||
| 05 | O-ring | 79X6MM | 1 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Spring clip | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Rubber buffer | 1 | 13711744978 | $3.50 | Shop at ECS Tuning | |||||
| 08 | Rubber grommet | 1 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 1 | 13717571982 | $1.93 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X35-U2-8.8 | 1 | 09/1998 | 07119903001 | $0.53 | Shop at ECS Tuning | |||
| 14 | Intake manifold | 1 | 13711437630 | $45.45 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 17 | Hi-lo screw | 4,9X40 | 1 | 09/1998 | 64501380496 | $1.27 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | 6,4X25X1,5 | 1 | 09/1998 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 18 | Washer | 6,4X25X1,5 | 1 | 09/1998 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 19 | Hex bolt | M6X40 | 1 | 09/1998 | 07119912310 | $0.43 | Shop at ECS Tuning | |||
| 20 | Rubber Mounting | 1 | 13711742763 | $2.00 | Shop at ECS Tuning | |||||
| 21 | Spring clip | L=34MM | 2 | 09/1998 | 13711707044 | $1.16 | Shop at ECS Tuning | |||
| 22 | Air hose | 1 | 09/1998 | 13711437886 | $8.20 | Shop at ECS Tuning | ||||
| 24 | Intake manifold | 1 | 12/1996 | 13711436861 | $11.46 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Intake muffler?
- This technical diagram illustrates the Intake muffler within the Fuel preparation system group for the 5 Series E39 525i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13711713637).
- Which models use the hardware listed in this Intake muffler?
- The hardware and components featured in the Intake muffler are specific to the 5 Series E39 525i produced during 2001. These technical specifications ensure that parts like the Intake muffler (13711713637) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler assembly?
- Each item in the Intake muffler corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13711713637 for the Fuel preparation system section.
