Intake muffler for BMW 7 Series E38 728i

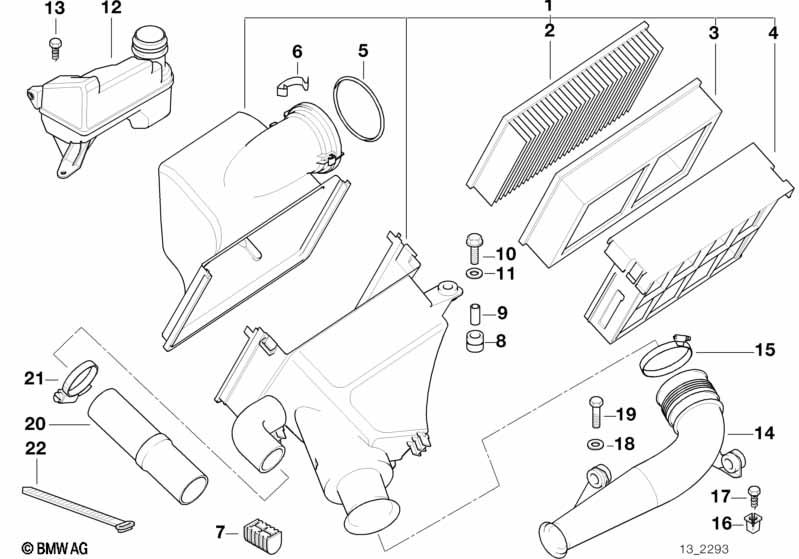

This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 12/1996 | 13711740737 | Shop at ECS Tuning | |||||
| 01 | Intake muffler | 1 | 12/1996 | 09/1998 | 13711436685 | $300.56 | ENDED | Shop at ECS Tuning | ||
| 01 | Intake muffler | 1 | 09/1998 | 13711713635 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 12/1996 | 13711744975 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Intake muffler | 1 | 12/1996 | 09/1998 | 13711436686 | ENDED | Shop at ECS Tuning | |||
| 01 | Intake muffler | 1 | 09/1998 | 13711716220 | ENDED | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| 03 | Frame | KNECHT | 1 | 13711730895 | $22.95 | ENDED | Shop at ECS Tuning | |||
| 04 | Frame | KNECHT | 1 | 13711730896 | $25.07 | Shop at ECS Tuning | ||||
| 05 | O-ring | 79X6MM | 1 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Spring clip | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 09/1998 | 13711702510 | $2.07 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 2 | 09/1998 | 13711742763 | $2.00 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 1 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 09 | Spacer sleeve | 1 | 13711702509 | $3.57 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X25 | 1 | 09/1998 | 07119913483 | $0.36 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M6X35-U2-8.8 | 1 | 09/1998 | 07119903001 | $0.53 | Shop at ECS Tuning | |||
| 11 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Resonator | 1 | 09/1998 | 13711744467 | $17.43 | Shop at ECS Tuning | ||||
| 12 | Resonator | 1 | 09/1998 | 13711703028 | $17.73 | Shop at ECS Tuning | ||||
| 13 | Screw for thermoplastic plastics | K-TS 5X14-Z2 | 2 | 07129903176 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Intake manifold | 1 | 13711427604 | $45.45 | +core | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST6,3X38-C | 1 | 09/1998 | 07119916886 | $0.96 | Shop at ECS Tuning | |||
| 17 | Hi-lo screw | 4,9X40 | 1 | 09/1998 | 64501380496 | $1.27 | Shop at ECS Tuning | |||
| 18 | Washer | A6,4-200HV-ZNS3 | 1 | 09/1998 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 18 | Washer | 6,4X25X1,5 | 1 | 09/1998 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 19 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 09/1998 | 07119902998 | $0.38 | Shop at ECS Tuning | |||
| 19 | Hex bolt | M6X40 | 1 | 09/1998 | 07119912310 | $0.43 | Shop at ECS Tuning | |||
| 20 | Air hose | 1 | 12/1996 | 13711436687 | Shop at ECS Tuning | |||||
| 21 | Hose clamp | L=47-54MM | 1 | 12/1996 | 04/1998 | 07129952121 | $1.42 | Shop at ECS Tuning | ||
| 21 | Hose clamp | L42-48 | 1 | 12/1996 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
| 22 | Cable tie | L=292MM/B=4,8MM | 2 | 12/1996 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
