Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 5 Series E39 525tds (2000)

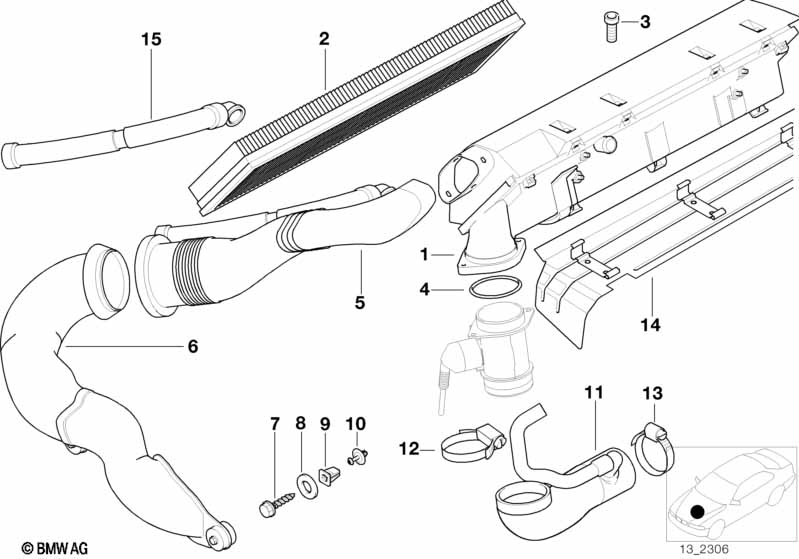

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13712246183 | $246.64 | +core | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 13712246416 | $38.84 | +core | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M6X24 | 4 | 13712244721 | $2.23 | Shop at ECS Tuning | ||||
| 04 | O-ring | 69X6MM | 1 | 13711710059 | $3.75 | Shop at ECS Tuning | ||||
| 05 | Rubber boot | 1 | 01/1997 | 13712247004 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Air channel | 1 | 13712246765 | $64.73 | Shop at ECS Tuning | |||||
| 07 | Hi-lo screw | 4,9X40 | 2 | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 08 | Washer | 6,4X25X1,5 | 2 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | 1 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 11 | Air hose | 1 | 13712246288 | Shop at ECS Tuning | ||||||
| For vehicles with Cold-climate version |
S842A=Yes |
|||||||||
| 11 | Air tube | 1 | 13717785825 | Shop at ECS Tuning | ||||||
| 12 | Hose clamp | L77-84 | 1 | 07129952131 | $1.78 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L59-66 | 1 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 14 | Heat resistant plate | 1 | 13712246869 | ENDED, +core | Shop at ECS Tuning | |||||
| 15 | Air hose | 1 | 01/1997 | 13711437887 | $15.63 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
