Intake muffler for BMW 8 Series E31 840Ci

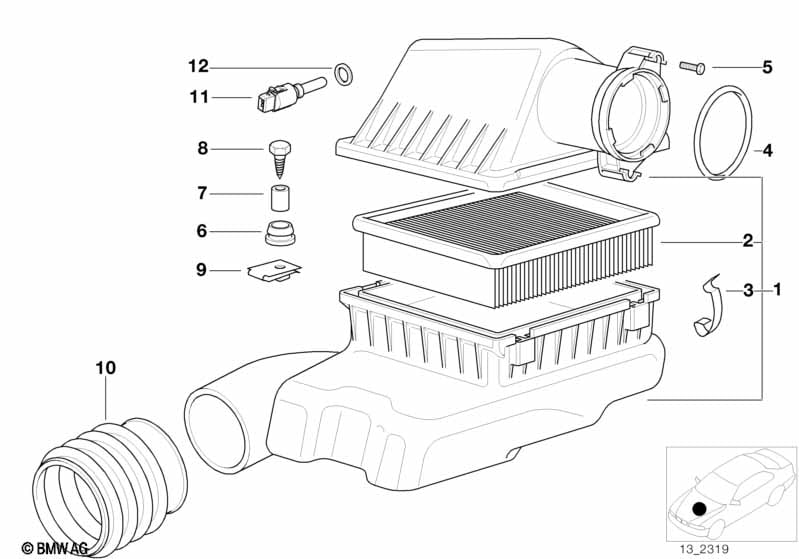

This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13711702194 | $300.56 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version ONLY FOR HEAVY DUTY |
S823A=Yes |
|||||||||
| 01 | Intake muffler with cyclon | 1 | 13711702195 | ENDED | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 13721736675 | $29.76 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version ONLY FOR HEAVY DUTY |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13721702158 | $29.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring clip | 7 | 13711729970 | $2.96 | Shop at ECS Tuning | |||||
| 04 | O-ring | 91X6MM | 1 | 13711731893 | $4.38 | Shop at ECS Tuning | ||||
| 05 | Screw | K50X22 | 2 | 13711715678 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Rubber grommet | 3 | 13711729979 | $3.55 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | 3 | 13711729980 | $5.21 | Shop at ECS Tuning | |||||
| 08 | Sheet metal screw | 6,3X22 | 3 | 17111709444 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Body nut | B6,3-6 | 3 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Rubber boot | 1 | 13711729992 | $16.20 | Shop at ECS Tuning | |||||
| 11 | Intake air temperature sensor | 1 | 13621730035 | $71.05 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
