Intake muffler for BMW 5 Series E39 535i (2003)
This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/1998 | 13711436129 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1998 | 13711436130 | ENDED | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 13721736675 | $29.76 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 02 | Air filter element | 1 | 13721702158 | $29.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring clip | L=42MM | 4 | 13711716113 | $1.16 | Shop at ECS Tuning | ||||
| 04 | O-ring | 79X6MM | 1 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 05 | Spring clip | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 06 | Rubber buffer | 1 | 13711704874 | $3.61 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 1 | 13711742771 | $4.36 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 1 | 13717571982 | $1.93 | Shop at ECS Tuning | |||||
| 09 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Intake air temperature sensor | 1 | 13629899008 | Shop at ECS Tuning | ||||||
| 12 | O-ring | 8X3 | 1 | 13621743299 | $1.25 | Shop at ECS Tuning | ||||
| 13 | Air channel | 1 | 13711437631 | $44.59 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 15 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Hi-lo screw | 4,9X40 | 1 | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 17 | Washer | 6,4X25X1,5 | 1 | 07146977329 | $0.64 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X40 | 1 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 21 | Rubber Mounting | 1 | 13711742763 | $2.00 | Shop at ECS Tuning | |||||
| 22 | Air hose | 1 | 12/1996 | 13711437887 | $15.63 | Shop at ECS Tuning | ||||
| 23 | Hose clamp | L42-48 | 1 | 12/1996 | 07129952119 | $1.15 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Intake muffler?

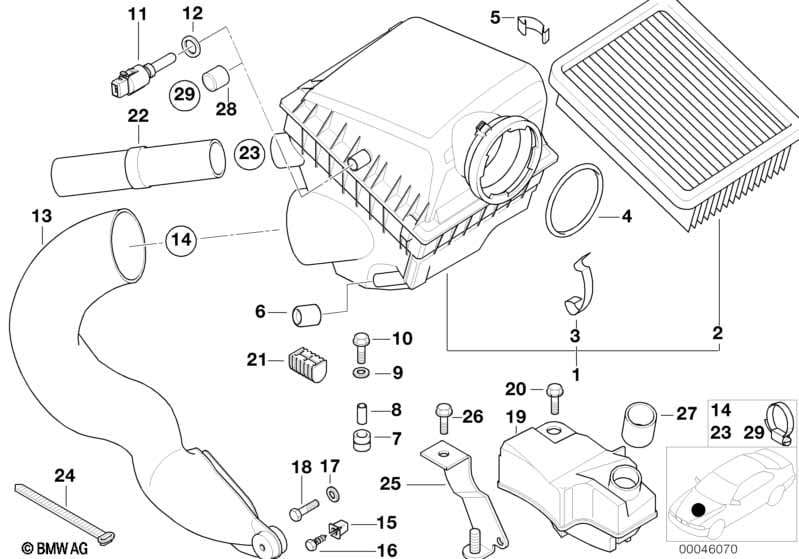

- This technical diagram illustrates the Intake muffler within the Fuel preparation system group for the 5 Series E39 535i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13711436129).
