Fuel tank breath.valve/disturb.air valve for BMW 7 Series E38 740i

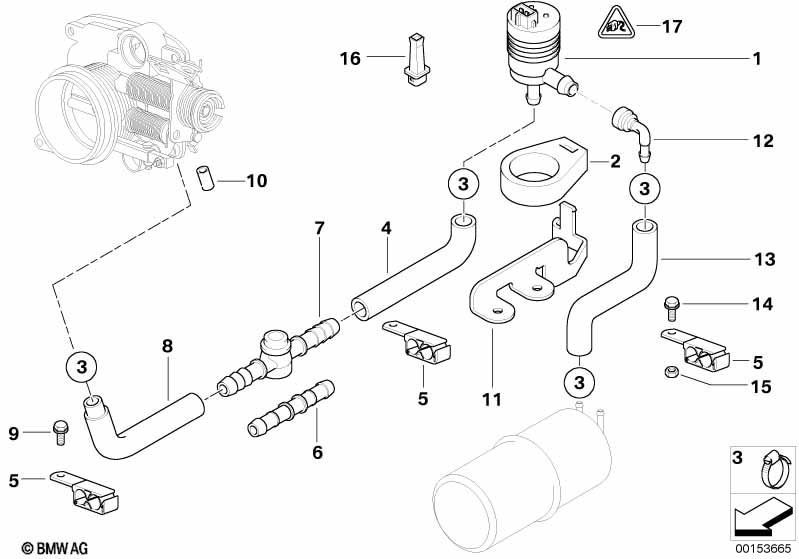

This Fuel tank breath.valve/disturb.air valve technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank breather valve | 1 | 09/1997 | 13901744150 | $82.88 | Shop at ECS Tuning | ||||
| 01 | Fuel tank breather valve | 1 | 09/1997 | 09/1998 | 13901433603 | $82.88 | Shop at ECS Tuning | |||
| 02 | Bracket ventilation valve | 1 | 09/1997 | 13901740461 | $3.75 | Shop at ECS Tuning | ||||
| 02 | Bracket ventilation valve | 1 | 09/1997 | 09/1998 | 13901433601 | $3.75 | Shop at ECS Tuning | |||
| 03 | Hose clamp | L12-15 | 4 | 09/1998 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 04 | Hose elbow | 32X175MM | 1 | 03/1997 | 13901742946 | $44.35 | ENDED | Shop at ECS Tuning | ||
| 04 | Hose elbow | 40X40MM | 1 | 03/1997 | 09/1998 | 16121183423 | $13.30 | ENDED | Shop at ECS Tuning | |
| 05 | Tubing support | 3 | 09/1998 | 13311716049 | $1.13 | Shop at ECS Tuning | ||||
| 06 | Connection piece | 1 | 09/1998 | 13531427072 | $1.53 | Shop at ECS Tuning | ||||
| For vehicles with National version Germany |
L801A=Yes |
|||||||||
| 07 | Disturbance air valve | D=2,4MM | 1 | 09/1998 | 13711247548 | Shop at ECS Tuning | ||||
| 08 | Hose elbow | 32X755MM | 1 | 03/1997 | 13901742944 | $80.03 | Shop at ECS Tuning | |||
| 08 | Hose elbow | 32X570MM | 1 | 03/1997 | 09/1998 | 13901707753 | $76.88 | Shop at ECS Tuning | ||
| 09 | Hex bolt | M6X12 | 1 | 09/1998 | 07119913013 | $1.22 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 10 | Cap | D=7,0MM | 1 | 09/1998 | 11611727176 | $3.39 | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 03/1997 | 13901742786 | $4.98 | ENDED | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 03/1997 | 09/1998 | 13901705379 | $3.85 | Shop at ECS Tuning | |||
| 12 | Connector | 90° | 1 | 03/1997 | 13901741595 | $3.95 | Shop at ECS Tuning | |||
| 12 | Connector | 135° | 1 | 03/1997 | 09/1998 | 13901433068 | $3.75 | ENDED | Shop at ECS Tuning | |
| 13 | Hose | 1 | 03/1997 | 13901706544 | $32.75 | ENDED | Shop at ECS Tuning | |||
| 13 | Fuel hose | 8X13MMX1000 | X | 03/1997 | 09/1998 | 13537563456 | $44.77 | Shop at ECS Tuning | ||
| 14 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 09/1998 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 14 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 09/1998 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 15 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 09/1998 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 16 | Resistor | 1000OHM/BOSCH | 1 | 09/1998 | 13901734469 | $6.33 | Shop at ECS Tuning | |||
| 17 | Socket housing | 2 POL. | 1 | 09/1997 | 09/1998 | 12521427615 | $1.73 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 2 | 09/1997 | 09/1998 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |
| -- | Protection cap | 1 | 09/1997 | 09/1998 | 12521716321 | $3.40 | Shop at ECS Tuning | |||
