Carburetor for BMW R45-R65LS..78-85 R65T (1985)

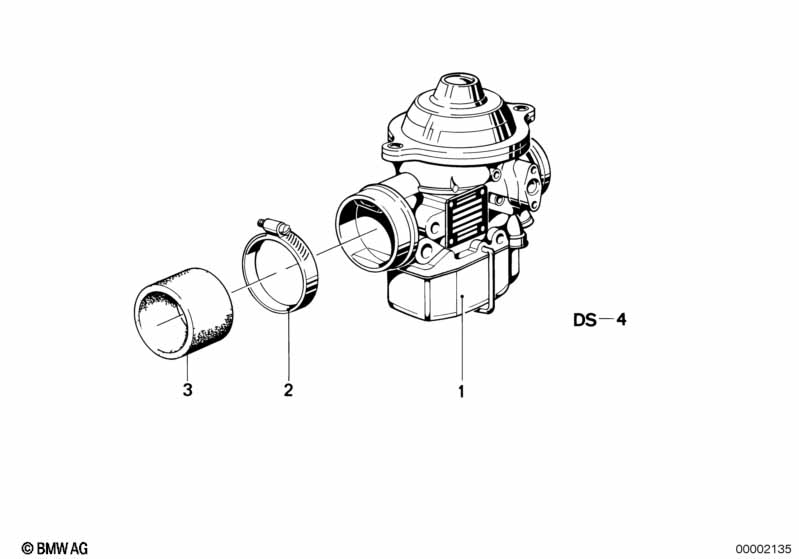

This Carburetor technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.

Carburetor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carburettor left 64/32/347 1 09/1982 13111337683 ENDED, +core Shop at ECS Tuning
01 Carburettor right 64/32/348 1 09/1982 13111337684 +core Shop at ECS Tuning
02 Hose clamp L=47-54MM 4 07129952121 $1.42 Shop at ECS Tuning
03 Rubber grommet 42X52X28 2 13721254654 $10.13 Shop at ECS Tuning
04 Gasket set carburettor 1 13111258051 $91.97 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
