Carburetor-float assy/jet for BMW R45-R65LS..78-85 R65LS (1985)

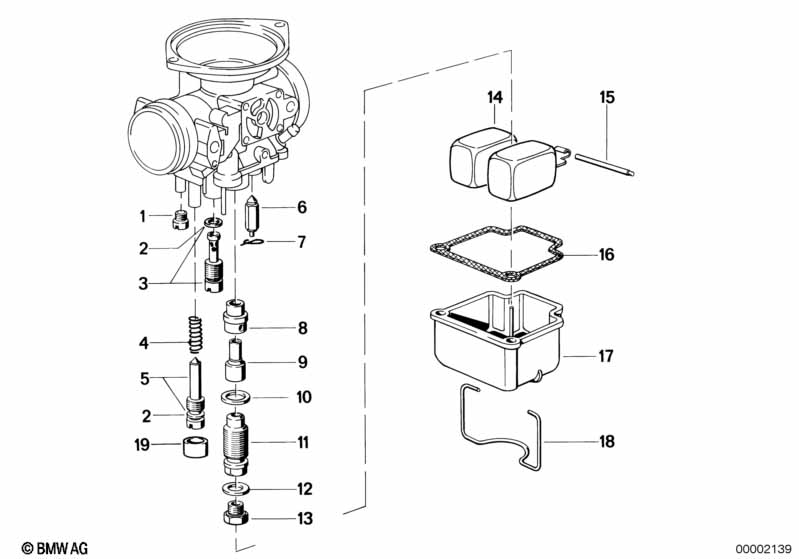

This Carburetor-float assy/jet technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister head screw | 2 | 13111259869 | $0.83 | Shop at ECS Tuning | |||||
| 02 | O-ring | 3.2X1.8 | 4 | 13111254735 | $2.46 | Shop at ECS Tuning | ||||
| 03 | Idling jet | 40 | 2 | 09/1980 | 13111337063 | $13.62 | Shop at ECS Tuning | |||
| 04 | Spring | 2 | 13111254736 | $1.48 | Shop at ECS Tuning | |||||
| 05 | Idling mixture screw | 2 | 13111335302 | $7.00 | Shop at ECS Tuning | |||||
| 06 | Float needle | 2 | 13111335318 | $23.52 | Shop at ECS Tuning | |||||
| 07 | Clamping spring | 2 | 13111335320 | $1.48 | Shop at ECS Tuning | |||||
| 08 | Pre-atomizer | 2 | 13111260973 | $7.21 | Shop at ECS Tuning | |||||
| 09 | Jet | 2,64 | 2 | 09/1980 | 13111335744 | $9.42 | Shop at ECS Tuning | |||
| 10 | O-ring | 8X2 | 2 | 13111257812 | $2.46 | Shop at ECS Tuning | ||||
| 11 | Venturi | 64/32/XXX | 2 | 13111335600 | $11.66 | Shop at ECS Tuning | ||||
| 12 | Washer | 2 | 13111254732 | $0.83 | Shop at ECS Tuning | |||||
| 13 | Main jet | 138 | 2 | 13111337691 | $4.30 | Shop at ECS Tuning | ||||
| 13 | Main jet | 142 | 2 | 13111337889 | $7.21 | Shop at ECS Tuning | ||||
| 13 | Main jet | 158 | 2 | 13111337890 | $7.21 | Shop at ECS Tuning | ||||
| 13 | Main jet | 162 | 2 | 13111337891 | $7.21 | Shop at ECS Tuning | ||||
| 13 | Main jet | 135 | 2 | 09/1982 | 13111256612 | $7.21 | Shop at ECS Tuning | |||
| 14 | Float | 2 | 13111254766 | $19.57 | +core | Shop at ECS Tuning | ||||
| 15 | Pin | 2 | 13111254768 | $1.48 | Shop at ECS Tuning | |||||
| 16 | Gasket | 2 | 13111254764 | $3.47 | Shop at ECS Tuning | |||||
| 17 | Float housing right | 1 | 13111254762 | $45.64 | +core | Shop at ECS Tuning | ||||
| 17 | Float housing left | 1 | 13111254763 | $45.64 | ENDED, +core | Shop at ECS Tuning | ||||
| 18 | Spring clip | 2 | 13111254765 | $5.89 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
