Air cleaner housing for BMW R45-R65LS..78-85 R65 (1985)

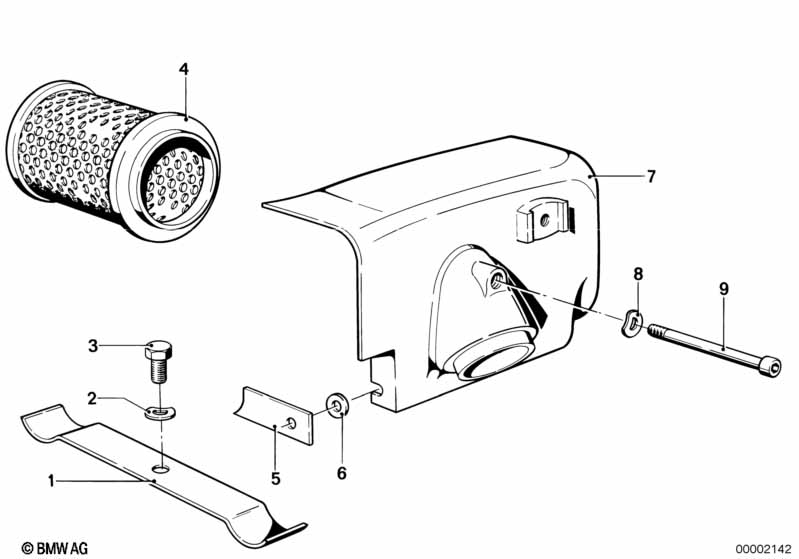

This Air cleaner housing technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| *FG R65 USA 11/79 R45,R45N,R65 Modell 81 | ||||||||||
| 01 | Clamping spring | 1 | 13721251169 | $12.57 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Air filter element | 1 | 13721251048 | Shop at ECS Tuning | ||||||
| 05 | Clamping spring | 1 | 13721335977 | $2.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Shim | 1 | 34213060174 | $1.13 | Shop at ECS Tuning | |||||
| 07 | Air cleaner housing left | 1 | 05/1980 | 13721335772 | $106.97 | Shop at ECS Tuning | ||||
| 07 | Air cleaner housing right | 1 | 05/1980 | 13721335773 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw | M6X178 | 1 | 61211459734 | $5.16 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
