Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 6 Series E24 633CSi (1979)

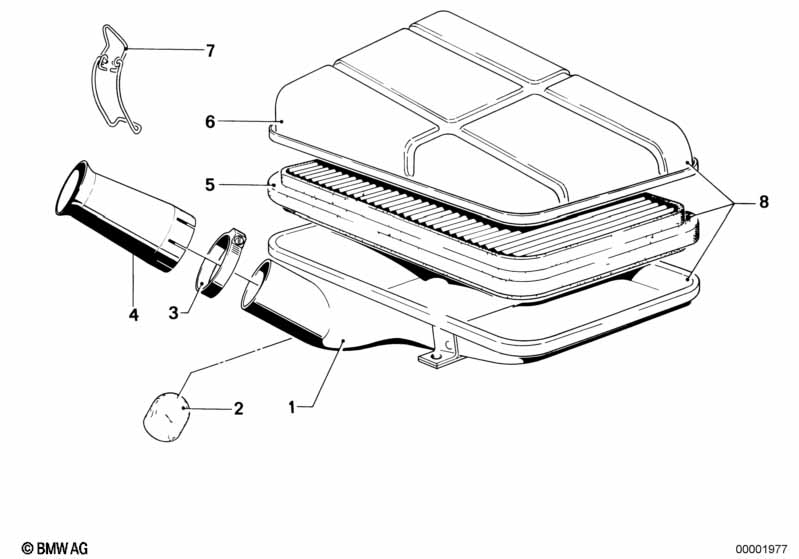

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air cleaner housing bottom | 1 | 09/1979 | 13711264367 | ENDED | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 1 | 09/1979 | 13711264387 | $3.38 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L77-84 | 1 | 09/1979 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 03 | Hose clamp | L83-90 | 1 | 09/1979 | 07129952133 | $1.78 | Shop at ECS Tuning | |||
| 04 | Suction tube | 1 | 09/1979 | 13711261217 | $18.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Air filter element | 1 | 09/1979 | 13721278138 | Shop at ECS Tuning | |||||
| 05 | Air filter element | 1 | 09/1979 | 13721278138 | Shop at ECS Tuning | |||||
| 06 | Housing upper part | 1 | 09/1979 | 13711264368 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wire-strap | 4 | 09/1979 | 13711259758 | $1.52 | Shop at ECS Tuning | ||||
| 08 | Intake muffler | 1 | 09/1979 | 13711271270 | $110.76 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- This technical diagram illustrates the Intake silencer / Filter cartridge Intake silencer / Filter cartridge within the Fuel preparation system group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Air cleaner housing bottom (Part #13711264367).
- Which models use the hardware listed in this Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- The hardware and components featured in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Air cleaner housing bottom (13711264367) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake silencer / Filter cartridge Intake silencer / Filter cartridge assembly?
- Each item in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Air cleaner housing bottom by locating its position on the schematic, which then links to the official BMW part number 13711264367 for the Fuel preparation system section.
