Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 7 Series E23 735i (1989)

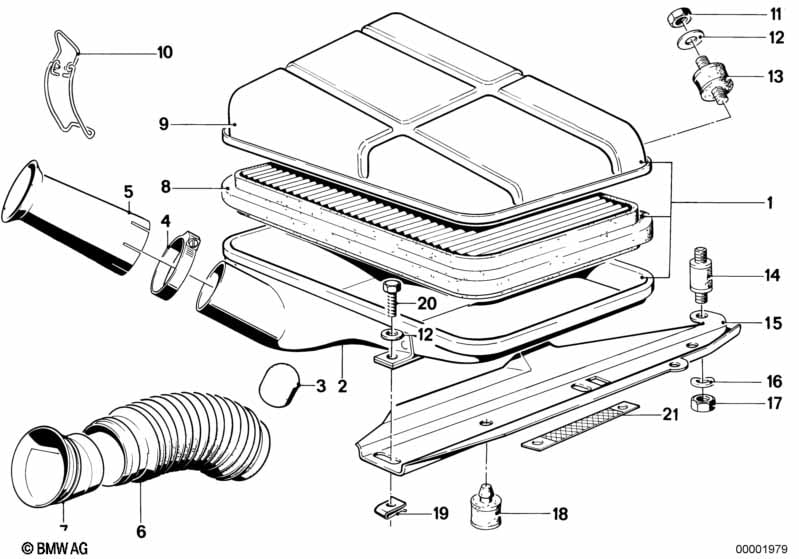

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 13711271270 | $110.76 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber Mounting | 1 | 13711264387 | $3.38 | Shop at ECS Tuning | |||||
| 06 | Intake tube | 1 | 01/1983 | 13711287327 | $4.36 | Shop at ECS Tuning | ||||
| 07 | Suction tube | 1 | 01/1983 | 13711287326 | $4.39 | Shop at ECS Tuning | ||||
| 10 | Wire-strap | 4 | 13711259758 | $1.52 | Shop at ECS Tuning | |||||
| 12 | Washer | A6,4-200HV-ZNS3 | 3 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Rubber Mounting | 2 | 13711259818 | $6.98 | Shop at ECS Tuning | |||||
| 14 | Rubber Mounting | 3 | 13621359216 | $10.80 | ENDED | Shop at ECS Tuning | ||||
| 15 | Bracket air volume determinator | 1 | 13711271588 | $116.99 | ENDED | Shop at ECS Tuning | ||||
| 16 | Washer | 8,4X16X1,6-ZNNV | 3 | 07119907030 | Shop at ECS Tuning | |||||
| 17 | Hex nut | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 17 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Bump stop | 2 | 13711263819 | $2.08 | Shop at ECS Tuning | |||||
| 18 | Bump stop | 2 | 13712900963 | Shop at ECS Tuning | ||||||
| 19 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 20 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning |
