Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E30 318i (1982)

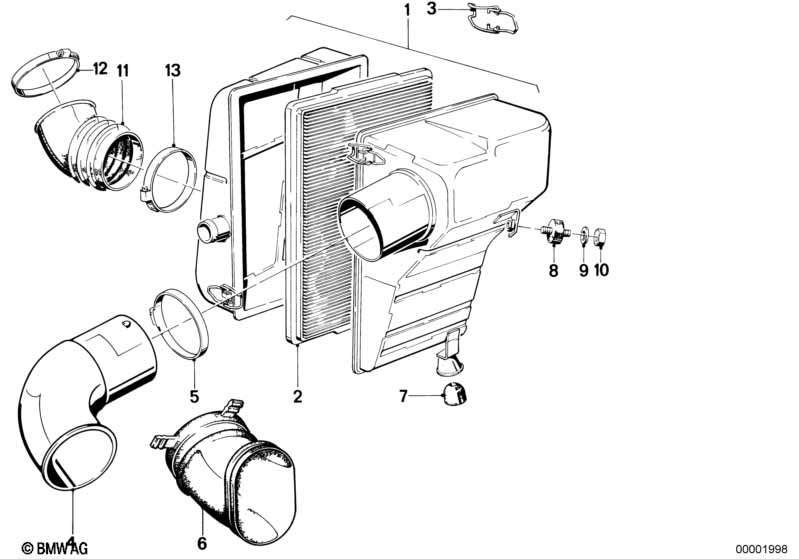

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 09/1983 | 13711284999 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1983 | 13711284999 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland or National version Australia |
L804A=Yes L810A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1983 | 13711277960 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=Yes S199A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1983 | 13711277960 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=Yes L810A=No S199A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1983 | 13711277960 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and National version Australia and without catalytic converter |
L804A=No L810A=Yes S199A=Yes |
|||||||||
| 01 | Intake muffler | 1 | 09/1983 | 13711277960 | ENDED | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 09/1983 | 13721278138 | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 09/1983 | 13721278138 | Shop at ECS Tuning | |||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 02 | Air filter element | 1 | 09/1983 | 13721278138 | Shop at ECS Tuning | |||||
| 02 | Air filter element | 1 | 09/1983 | 13721278138 | Shop at ECS Tuning | |||||
| 03 | Wire-strap | 3 | 09/1983 | 13711259758 | $1.52 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 03 | Wire-strap | 3 | 09/1983 | 13711259758 | $1.52 | Shop at ECS Tuning | ||||
| 04 | Intake tube | 1 | 09/1983 | 13711285495 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 04 | Intake tube | 1 | 09/1983 | 13711285495 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L77-84 | 1 | 09/1983 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 05 | Hose clamp | L77-84 | 1 | 09/1983 | 07129952131 | $1.78 | Shop at ECS Tuning | |||
| 06 | Suction tube | 1 | 09/1983 | 13711284288 | $11.96 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 06 | Suction tube | 1 | 09/1983 | 13711284288 | $11.96 | ENDED | Shop at ECS Tuning | |||
| 07 | Distance rubber | 1 | 09/1983 | 13711312328 | $6.75 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 07 | Distance rubber | 1 | 09/1983 | 13711312328 | $6.75 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 09/1983 | 13711259818 | $6.98 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 09/1983 | 13714222584 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 08 | Rubber Mounting | 2 | 09/1983 | 13711259818 | $6.98 | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 2 | 09/1983 | 13714222584 | ENDED | Shop at ECS Tuning | ||||
| 09 | Washer | A6,4-200HV-ZNS3 | 2 | 09/1983 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 09 | Washer | 6,4 | 2 | 09/1983 | 07119936425 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex nut | M6-8-ZNS3 | 2 | 09/1983 | 07129904876 | $0.16 | Shop at ECS Tuning | |||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 2 | 09/1983 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 10 | Hex nut | M6-8-ZNS3 | 2 | 09/1983 | 07129904876 | $0.16 | Shop at ECS Tuning | |||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 2 | 09/1983 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 11 | Rubber boot | 1 | 09/1983 | 13711285310 | $11.27 | Shop at ECS Tuning | ||||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 11 | Rubber boot | 1 | 09/1983 | 13711285310 | $11.27 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L71-78 | 1 | 09/1983 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 12 | Hose clamp | L71-78 | 1 | 09/1983 | 07129952129 | $1.48 | Shop at ECS Tuning | |||
| 13 | Hose clamp | L65-72 | 1 | 09/1983 | 07129952127 | $1.89 | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 13 | Hose clamp | L65-72 | 1 | 09/1983 | 07129952127 | $1.89 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
