Zyklon pre separator for BMW 3 Series E21 315 (1983)

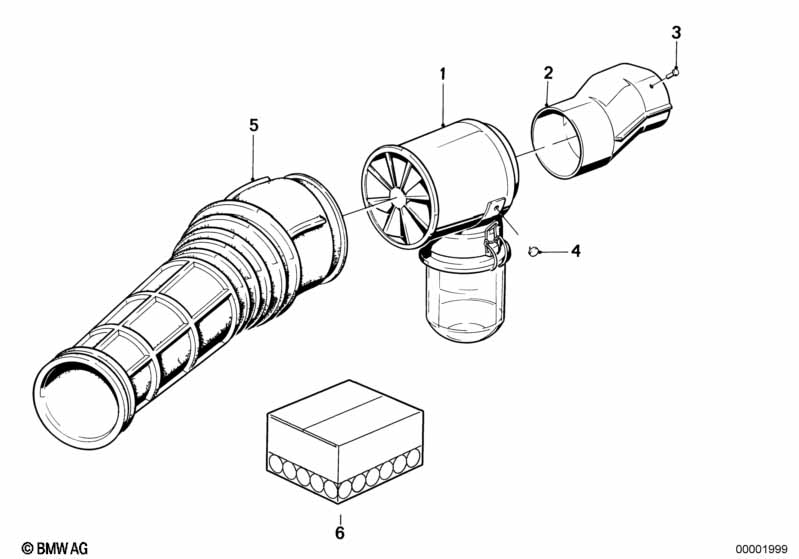

This Zyklon pre separator technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 315. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1983.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY FOR HEAVY DUTY | ||||||||||
| 01 | Zyklon pre separator | 1 | 09/1982 | 13711287386 | ENDED, SI 130182163 | Shop at ECS Tuning | ||||
| 01 | Zyklon pre separator | 1 | 09/1982 | 13711278940 | $154.01 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Connection pipe | 1 | 09/1982 | 13711286233 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection pipe | 1 | 09/1982 | 13711286233 | ENDED | Shop at ECS Tuning | ||||
| 03 | Blind rivet | 3,2 2A | 3 | 09/1982 | 07129948747 | $0.09 | Shop at ECS Tuning | |||
| 04 | Sheet metal screw | ST4,8X9,5-C-H-Z | 3 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Guide ring | 1 | 09/1982 | 13711287654 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 315 Zyklon pre separator?
- This technical diagram illustrates the Zyklon pre separator within the Fuel preparation system group for the 3 Series E21 315 produced during 1983. It provides a detailed exploded view of the components, identifying key parts such as the Zyklon pre separator (Part #13711287386).
- Which models use the hardware listed in this Zyklon pre separator?
- The hardware and components featured in the Zyklon pre separator are specific to the 3 Series E21 315 produced during 1983. These technical specifications ensure that parts like the Zyklon pre separator (13711287386) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zyklon pre separator assembly?
- Each item in the Zyklon pre separator corresponds to the numbered list below the illustration. For the 3 Series E21 315, you can identify the Zyklon pre separator by locating its position on the schematic, which then links to the official BMW part number 13711287386 for the Fuel preparation system section.
