Throttle Housing Assy for BMW 3 Series E30 320i (1991)

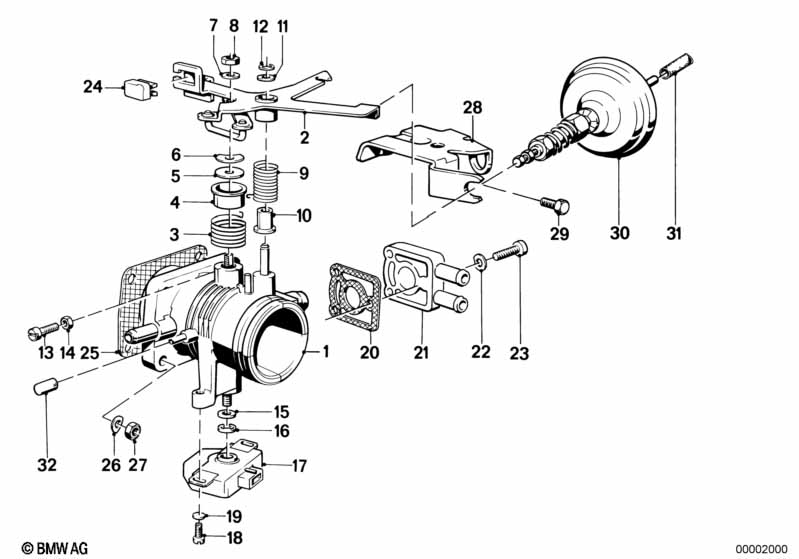

This Throttle Housing Assy technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Throttle Housing Assy | CODE "AH" | 1 | 09/1987 | 13541716063 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1985 | 13541711175 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Throttle Housing Assy | 1 | 09/1985 | 13541711174 | Shop at ECS Tuning | |||||
| 02 | Operating lever | 1 | 09/1987 | 13541720807 | ENDED | Shop at ECS Tuning | ||||
| 03 | Retainer spring | 1 | 09/1987 | 13541720816 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bush | 1 | 13541714176 | ENDED | Shop at ECS Tuning | |||||
| 05 | Shim | 19X8X0,1 | 1 | 13541256344 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wave washer | 1 | 13541714204 | ENDED | Shop at ECS Tuning | |||||
| 07 | Circlip | 8,4X13 | 1 | 13541267663 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8X1 | 1 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 09 | Retainer spring | 1 | 09/1987 | 13541720817 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bush | 1 | 13541714178 | $13.50 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wave washer | 1 | 13541714204 | ENDED | Shop at ECS Tuning | |||||
| 12 | Circlip | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 13 | Grub screw | M5X20 | 1 | 13541278976 | $1.57 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex nut | M6-04-2-ZN | 1 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Shim | 19X8X0,2 | 1 | 13541256345 | ENDED | Shop at ECS Tuning | ||||
| 15 | Shim | 18X8X0,2 | 1 | 13541312414 | $1.77 | ENDED | Shop at ECS Tuning | |||
| 16 | Lock Ring | 8X0,8 | 1 | 07119934035 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Throttle valve switch | 1 | 09/1985 | 13631710559 | $117.43 | Shop at ECS Tuning | ||||
| 18 | Fillister-head screw | M4 X 9,2 | 2 | 13541705562 | $0.93 | Shop at ECS Tuning | ||||
| 19 | Washer | 4,2X7X1 | 2 | 13541273669 | ENDED | Shop at ECS Tuning | ||||
| 20 | Gasket Asbestos Free | 1 | 13541285471 | $0.79 | Shop at ECS Tuning | |||||
| 21 | Cover | 1 | 13541285470 | $14.35 | Shop at ECS Tuning | |||||
| 22 | Washer | 4,2X7X1 | 3 | 13541273669 | ENDED | Shop at ECS Tuning | ||||
| 23 | Fillister-head screw | M4 TX20 8.8 | 3 | 13541705561 | $1.62 | Shop at ECS Tuning | ||||
| 24 | Bearing accelator bowden cable | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
| 25 | Gasket Asbestos Free | D=55MM | 1 | 13541271457 | $3.54 | Shop at ECS Tuning | ||||
| 26 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 26 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 26 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 27 | Hex nut with plate | M6 ZNT | 4 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 28 | Holder | 1 | 11611714752 | $4.85 | Shop at ECS Tuning | |||||
| 29 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 30 | Control box | 1 | 13541289039 | $231.96 | Shop at ECS Tuning | |||||
| 31 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 32 | Cap | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 32 | Cap | D=5,0MM | 1 | 11611437694 | $3.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
