Secondary throttle housing tube ASC for BMW 7 Series E38 730i (1996)

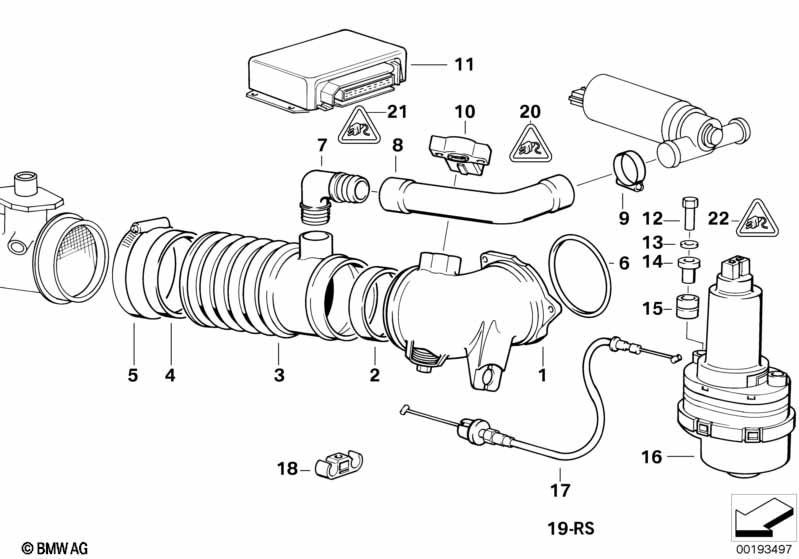

This Secondary throttle housing tube ASC technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Secondary throttle housing tube ASC | ASC+T | 1 | 13541747764 | $407.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Isa screw with washer | M6X20-ZNNIV SI | 3 | 07129905556 | $0.36 | Shop at ECS Tuning | ||||
| 02 | Rubber Ring | 1 | 13711702002 | $6.82 | Shop at ECS Tuning | |||||
| 03 | Rubber boot | ASC+T | 1 | 13711432409 | $59.25 | Shop at ECS Tuning | ||||
| 04 | Rubber Ring | 1 | 13711736198 | $8.98 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L89-96 | 1 | 07129952135 | $2.18 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L95-102 | 1 | 07129952137 | $1.52 | Shop at ECS Tuning | ||||
| 06 | O-ring | ASC+T | 1 | 13541747475 | $2.48 | ENDED | Shop at ECS Tuning | |||
| 07 | Support | 1 | 13541272473 | $1.43 | Shop at ECS Tuning | |||||
| 08 | Hose | ASC+T | 1 | 13411702809 | $12.75 | ENDED | Shop at ECS Tuning | |||
| 09 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 10 | Throttle valve switch | 4 KOHM | 1 | 13631721456 | +core | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Sleeve | ASC+T | 2 | 35411160589 | $1.40 | Shop at ECS Tuning | ||||
| 15 | Rubber grommet | 2 | 35411160590 | $1.23 | Shop at ECS Tuning | |||||
| 16 | Throttle actuator Ads 2 | 1 | 35411162548 | $419.10 | Shop at ECS Tuning | |||||
| 17 | Bowden cable Ads 2 | L=791MM/PBX | 1 | 35411162647 | $20.42 | Shop at ECS Tuning | ||||
| 18 | Tubing support | D=6MM | 1 | 61131379134 | $0.72 | Shop at ECS Tuning | ||||
| 19 | Throttle actuator Ads 2 | 1 | 35411162548 | $419.10 | Shop at ECS Tuning | |||||
| 22 | Universal socket housing uncoded | 2 POL. | 1 | 61138352390 | $19.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 0,75-1,0 MM² | 1 | 61130007569 | $2.27 | Shop at ECS Tuning | ||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | 1 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | GRAU/0.5-1.0MM² | 1 | 61131383789 | $0.20 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | GELB 1.5-2.5MM² | 1 | 61131383791 | $0.20 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 4.0MM² | 1 | 61138352924 | $0.28 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Secondary throttle housing tube ASC?
- This technical diagram illustrates the Secondary throttle housing tube ASC within the Fuel preparation system group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Secondary throttle housing tube ASC (Part #13541747764).
- Which models use the hardware listed in this Secondary throttle housing tube ASC?
- The hardware and components featured in the Secondary throttle housing tube ASC are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Secondary throttle housing tube ASC (13541747764) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Secondary throttle housing tube ASC assembly?
- Each item in the Secondary throttle housing tube ASC corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Secondary throttle housing tube ASC by locating its position on the schematic, which then links to the official BMW part number 13541747764 for the Fuel preparation system section.
