Valves/Pipes of fuel injection system for BMW 7 Series E38 750iLS (2001)

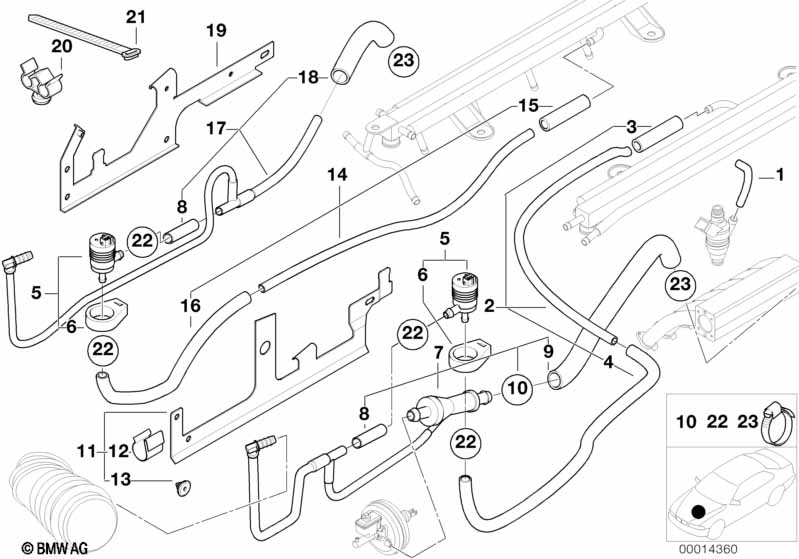

This Valves/Pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Distribution hose | 12 | 09/1998 | 13531436017 | $11.50 | Shop at ECS Tuning | ||||
| 02 | Air intake tube left | ZYL.7-12 | 1 | 09/1998 | 13531435595 | $33.37 | Shop at ECS Tuning | |||
| 03 | Hose | 1 | 09/1998 | 13531436156 | $2.90 | Shop at ECS Tuning | ||||
| 04 | Hose elbow | 1 | 09/1998 | 13531435597 | $10.70 | ENDED | Shop at ECS Tuning | |||
| 05 | Air shut-off valve | 2 | 09/1998 | 13531435611 | $75.10 | Shop at ECS Tuning | ||||
| 06 | Bracket ventilation valve | 2 | 09/1998 | 13901740461 | $3.75 | Shop at ECS Tuning | ||||
| 07 | air line with sucking jet pump | 1 | 09/1998 | 13531435603 | $75.62 | Shop at ECS Tuning | ||||
| 08 | Hose | 2 | 09/1998 | 13531435604 | $2.37 | Shop at ECS Tuning | ||||
| 09 | Hose elbow | 1 | 09/1998 | 13531435605 | $31.92 | Shop at ECS Tuning | ||||
| 10 | Clamp | 1 | 09/1998 | 11151726340 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Support left | ZYL.7-12 | 1 | 09/1998 | 13531435600 | $10.22 | Shop at ECS Tuning | |||
| 12 | Cable holder | EG2 | 1 | 09/1998 | 11787547202 | $0.78 | Shop at ECS Tuning | |||
| 13 | Clutch pedal stop buffer | 1 | 09/1998 | 35311103849 | $0.73 | Shop at ECS Tuning | ||||
| 14 | Air intake tube right | ZYL.1-6 | 1 | 09/1998 | 13531435598 | $33.37 | Shop at ECS Tuning | |||
| 15 | Hose | 1 | 09/1998 | 13531436156 | $2.90 | Shop at ECS Tuning | ||||
| 16 | Hose elbow | 1 | 09/1998 | 13531435599 | $10.62 | Shop at ECS Tuning | ||||
| 17 | Air intake tube | 1 | 09/1998 | 13531435606 | $37.08 | Shop at ECS Tuning | ||||
| 18 | Hose | 1 | 09/1998 | 13531435607 | $8.92 | Shop at ECS Tuning | ||||
| 19 | Support right | ZYL.1-6 | 1 | 09/1998 | 13531435601 | $8.37 | ENDED | Shop at ECS Tuning | ||
| 20 | Hose clamp | 2 | 09/1998 | 13531435602 | $1.08 | Shop at ECS Tuning | ||||
| 21 | Cable tie | L=292MM/B=4,8MM | 2 | 09/1998 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 22 | Hose clamp | L12-14,5 | 4 | 09/1998 | 32411712735 | $0.62 | Shop at ECS Tuning | |||
| 23 | Hose clamp | 21,3MM | 2 | 09/1998 | 11151726339 | $1.02 | Shop at ECS Tuning |
