3/2-way valve and fuel hoses for BMW 5 Series E39 528i (1998)
This 3/2-way valve and fuel hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | 3/2 directional control valve | 1 | 09/1997 | 13311740281 | $134.45 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Bush | 2 | 09/1997 | 13311740937 | $1.27 | ENDED | Shop at ECS Tuning | |||
| 03 | Pressure regulator | 3,5BAR/PIERBURG | 1 | 09/1997 | 13531729319 | $75.10 | Shop at ECS Tuning | |||
| 04 | Clamping spring | 1 | 09/1997 | 07/1999 | 13531341694 | $4.84 | Shop at ECS Tuning | |||
| 04 | Clamping bracket | 1 | 09/1997 | 13321440346 | $1.82 | Shop at ECS Tuning | ||||
| 05 | O-ring | 20X2,5 | 1 | 09/1997 | 13531720251 | $4.38 | Shop at ECS Tuning | |||
| 06 | O-ring | 5X1,5 | 1 | 09/1997 | 13531720252 | $3.75 | Shop at ECS Tuning | |||
| 07 | Hex nut with plate | AM6-8-ZNNIV SI | 3 | 09/1997 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 08 | Hose | 1 | 09/1997 | 13311707828 | $22.60 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 09/1997 | 13311435092 | $26.95 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 8 | 09/1997 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 11 | Hose | 1 | 09/1997 | 13311707827 | $22.60 | ENDED | Shop at ECS Tuning | |||
| 12 | Hose | 1 | 09/1997 | 13311707829 | $22.60 | Shop at ECS Tuning | ||||
| 13 | holder, 3/2-way control valve | 1 | 09/1997 | 13318215357 | $5.75 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex bolt with washer | M6X20MM | 2 | 09/1997 | 51712752359 | $1.34 | Shop at ECS Tuning | |||
| 16 | Vacuum hose black | 3,5X1,8 | X | 09/1997 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 19 | Cable holder | 1 | 09/1997 | 12141717663 | $1.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i 3/2-way valve and fuel hoses?

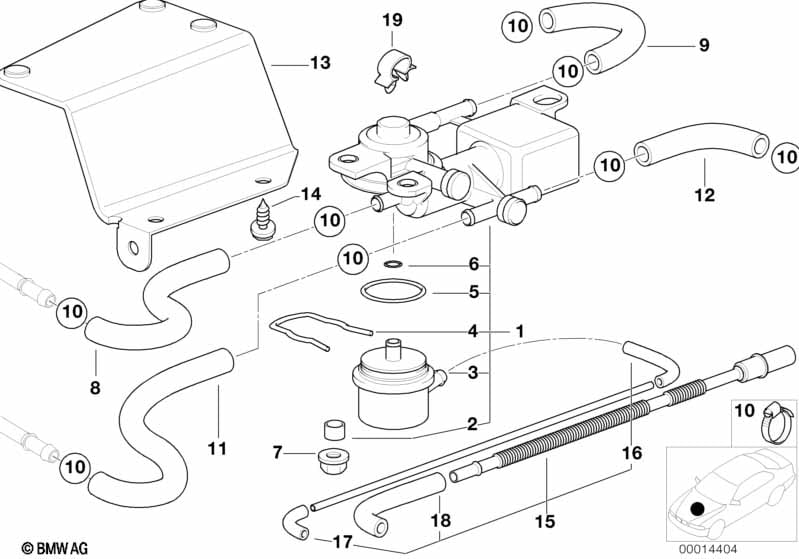

- This technical diagram illustrates the 3/2-way valve and fuel hoses within the Fuel preparation system group for the 5 Series E39 528i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the 3/2 directional control valve (Part #13311740281).
