Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 3 Series E46 328i (2000)

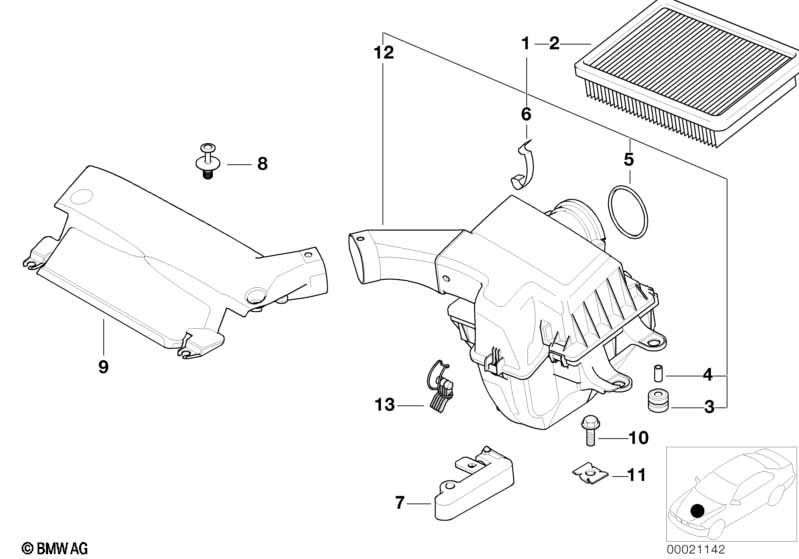

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 06/1999 | 13717503496 | $300.56 | Shop at ECS Tuning | ||||
| 02 | Air filter element | 1 | 13721730449 | Shop at ECS Tuning | ||||||
| 03 | Rubber grommet | 2 | 13711702508 | $3.34 | Shop at ECS Tuning | |||||
| 04 | Sleeve | 2 | 13717525711 | $3.95 | Shop at ECS Tuning | |||||
| 05 | O-ring | 79X6MM | 1 | 13711720540 | $2.48 | Shop at ECS Tuning | ||||
| 06 | Spring clip | L=34MM | 2 | 13711707044 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Rubber Mounting | 1 | 13711437473 | $11.27 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 4 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 09 | Intake manifold | 1 | 13717502842 | $45.45 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 11 | Prestol-cage | M6 ZNS3 | 2 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 12 | Suction tube | 1 | 13711438768 | $22.30 | Shop at ECS Tuning | |||||
| 13 | Tensioner | 4 | 13719071752 | $2.07 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- This technical diagram illustrates the Intake silencer / Filter cartridge Intake silencer / Filter cartridge within the Fuel preparation system group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13717503496).
- Which models use the hardware listed in this Intake silencer / Filter cartridge Intake silencer / Filter cartridge?
- The hardware and components featured in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Intake muffler (13717503496) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake silencer / Filter cartridge Intake silencer / Filter cartridge assembly?
- Each item in the Intake silencer / Filter cartridge Intake silencer / Filter cartridge corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13717503496 for the Fuel preparation system section.
