Nozzles/pipes of fuel injection system for BMW 3 Series E46 320d (2000)

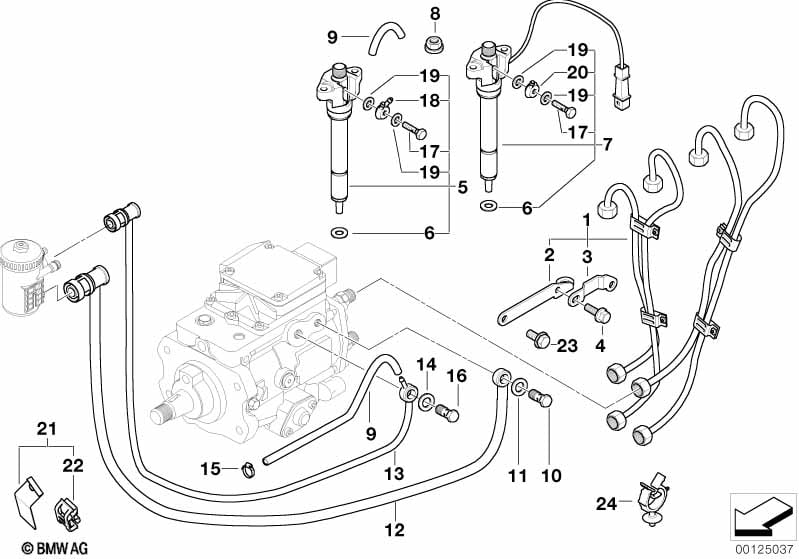

This Nozzles/pipes of fuel injection system technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Injection pipe | 1-4 | 1 | 09/2001 | 13532247300 | Shop at ECS Tuning | ||||
| 02 | Fuel pipe bracket | 1 | 09/2001 | 13532248076 | Shop at ECS Tuning | |||||
| 03 | Fuel pipe bracket | 1 | 09/2001 | 13532248077 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X20-ZNS3 | 1 | 09/2001 | 07147165618 | $0.73 | Shop at ECS Tuning | |||
| 05 | Injection nozzle | 3 | 09/2001 | 13532246828 | $186.37 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 4 | 09/2001 | 13532247156 | $3.63 | Shop at ECS Tuning | ||||
| 07 | Injection nozzle with transmitter | 1 | 09/2001 | 13532246829 | $366.02 | Shop at ECS Tuning | ||||
| 08 | Flange nut | M6 | 8 | 09/2001 | 13537801713 | $0.23 | Shop at ECS Tuning | |||
| 09 | Fuel hose | 3X7MM | X | 09/2001 | 13532246959 | $33.57 | Shop at ECS Tuning | |||
| 10 | Hollow bolt | 1 | 09/2001 | 11421338506 | $15.92 | Shop at ECS Tuning | ||||
| 10 | Hollow bolt | 1 | 09/2001 | 07119905427 | $2.25 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A12X17-AL | 2 | 09/2001 | 07119963150 | $0.09 | Shop at ECS Tuning | |||
| 12 | Fuel supply line | 1 | 09/2001 | 13532247414 | Shop at ECS Tuning | |||||
| 13 | Fuel return line | 1 | 09/2001 | 13532247415 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A14X18-AL | 2 | 09/2001 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 15 | Hose clamp | L12-15 | 1 | 09/2001 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 16 | Valve | 1 | 09/2001 | 13512247328 | Shop at ECS Tuning | |||||
| 17 | Hollow bolt | 4 | 09/2001 | 13532247160 | Shop at ECS Tuning | |||||
| 18 | Overflow oil line connection | 3 | 09/2001 | 13532247157 | Shop at ECS Tuning | |||||
| 19 | Washer-gasket | 8 | 09/2001 | 13532247159 | Shop at ECS Tuning | |||||
| 20 | Overflow oil line connection | 1 | 09/2001 | 13532247158 | Shop at ECS Tuning |
