Fuel supply/filter for BMW 3 Series E46 320d (2000)

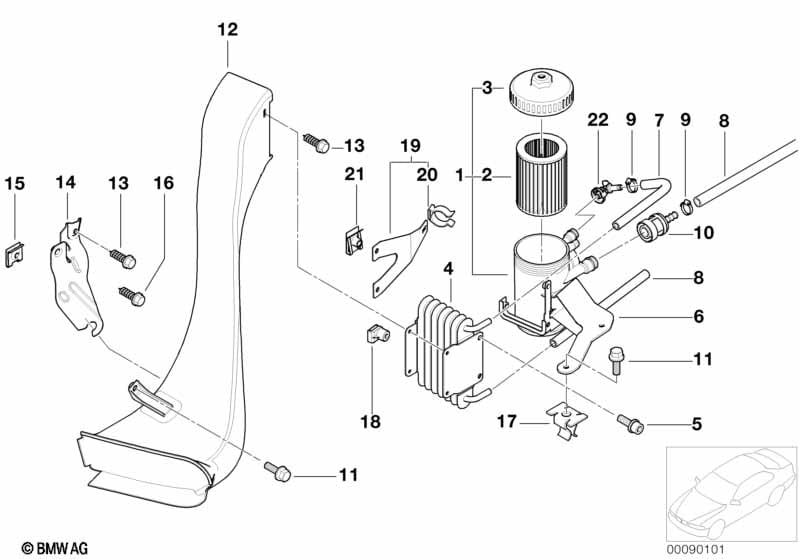

This Fuel supply/filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | for continuation of air duct see HG 51 | |||||||||
| 01 | Fuel filter | 1 | 09/2001 | 13322246878 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fuel filter | 1 | 09/2001 | 13322246881 | $17.48 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 09/2001 | 13322246880 | Shop at ECS Tuning | |||||
| 04 | Fuel radiator | 1 | 09/2001 | 13327792140 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M6X14 | 4 | 09/2001 | 13322249444 | Shop at ECS Tuning | ||||
| 06 | Bracket fuel strainer | 1 | 09/2001 | 13322247412 | Shop at ECS Tuning | |||||
| 07 | Fuel hose | 1 | 09/2001 | 13537786395 | Shop at ECS Tuning | |||||
| 08 | Fuel hose | 8X13MM | X | 09/2000 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 08 | Fuel hose | 8X13MM | X | 09/2001 | 13537529775 | $44.77 | Shop at ECS Tuning | |||
| 09 | Hose clamp | L12-15 | 2 | 09/2001 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 10 | Connection | 1 | 09/2001 | 13532247700 | Shop at ECS Tuning | |||||
| 11 | Hex bolt with washer | M6X20 | 3 | 09/2001 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| For vehicles with Aerodynamics package |
S716A=No |
|||||||||
| 12 | Air duct | 1 | 09/2001 | 13322247413 | Shop at ECS Tuning | |||||
| 13 | Hex head screw | ST4,8X16-ZNS3 | 3 | 07/2000 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 13 | Hex bolt | TS5X17 SW8 D=16 | 3 | 09/2001 | 07149126885 | $0.49 | Shop at ECS Tuning | |||
| 14 | Airduct bracket | 1 | 09/2001 | 13322247699 | Shop at ECS Tuning | |||||
| 15 | Body nut | ST 4,8-6-ZNS3 | 1 | 09/2001 | 07129904225 | $0.16 | Shop at ECS Tuning | |||
| 16 | Hex head screw | ST4,8X19-C-Z2 | 1 | 09/2001 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 17 | Prestol-cage | M6 ZNS3 | 2 | 09/2001 | 32411095443 | $1.48 | Shop at ECS Tuning | |||
| 18 | Plastic nut | 2 | 09/2001 | 13322249575 | Shop at ECS Tuning | |||||
| 19 | Bracket, return hose | 1 | 09/1999 | 09/2001 | 64216905345 | ENDED | Shop at ECS Tuning | |||
| 20 | Clamp | D=24,5MM | 1 | 09/1999 | 09/2001 | 61131379580 | $0.63 | Shop at ECS Tuning | ||
| 21 | Nut holder | M6 | 1 | 09/1999 | 09/2001 | 52532303110 | $1.55 | ENDED | Shop at ECS Tuning | |
| 22 | Connection | 90° | 1 | 09/2001 | 13532249984 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
