Intake muffler for BMW 3 Series E46 320d (2000)

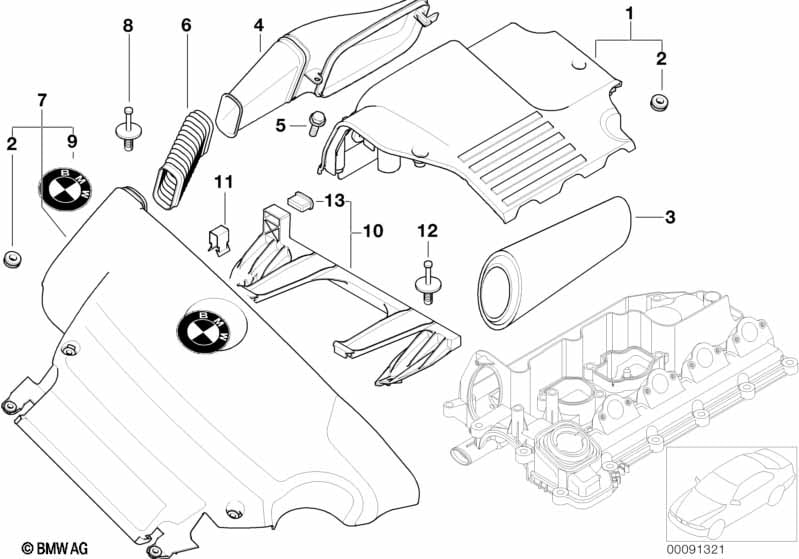

This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 09/2001 | 13712246995 | Shop at ECS Tuning | |||||
| 03 | Air filter element | 1 | 09/2001 | 13712246997 | $49.84 | Shop at ECS Tuning | ||||
| 04 | Intake manifold | 1 | 09/2001 | 13717787518 | $24.86 | Shop at ECS Tuning | ||||
| 05 | Fillister head with washer | M6X16-Z1 SW | 1 | 09/2001 | 07119901913 | $0.33 | Shop at ECS Tuning | |||
| 06 | Rubber boot | 1 | 09/2001 | 13712247406 | Shop at ECS Tuning | |||||
| 07 | Suction hood | 1 | 03/2000 | 09/2001 | 13717786529 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 4 | 09/2001 | 51471919209 | $0.45 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320d Intake muffler?
- This technical diagram illustrates the Intake muffler within the Fuel preparation system group for the 3 Series E46 320d produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Cover (Part #13712246995).
- Which models use the hardware listed in this Intake muffler?
- The hardware and components featured in the Intake muffler are specific to the 3 Series E46 320d produced during 2000. These technical specifications ensure that parts like the Cover (13712246995) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake muffler assembly?
- Each item in the Intake muffler corresponds to the numbered list below the illustration. For the 3 Series E46 320d, you can identify the Cover by locating its position on the schematic, which then links to the official BMW part number 13712246995 for the Fuel preparation system section.
