Carburetor mounting parts for BMW 1502-2002tii 2002 (1971)

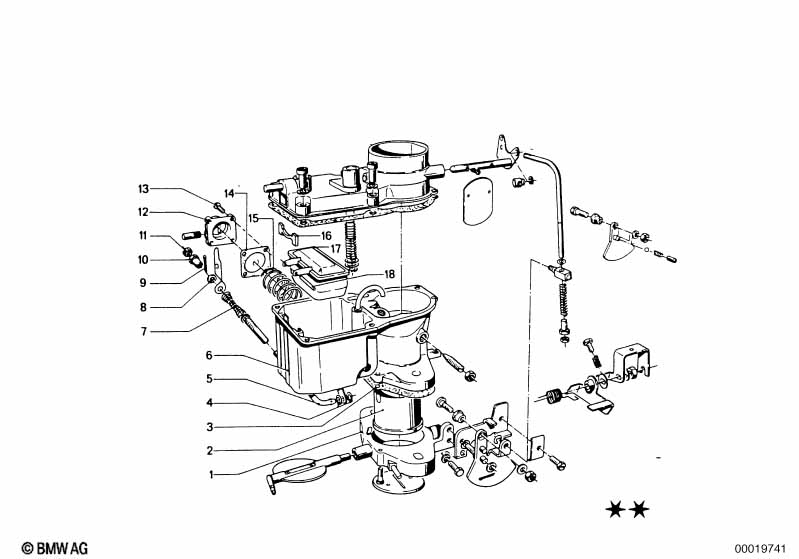

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Throttle housing | 1 | 03/1966 | 12/1975 | 13111252948 | ENDED | Shop at ECS Tuning | |||
| 02 | Venturi | D=30MM | 1 | 09/1963 | 12/1975 | 13110639113 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket | 1 | 01/1966 | 12/1975 | 13110739121 | $3.86 | Shop at ECS Tuning | |||
| 04 | Lock Ring | 2 | 13110639235 | ENDED | Shop at ECS Tuning | |||||
| 05 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 06 | Float chamber | 1 | 01/1968 | 12/1975 | 13111257009 | ENDED | Shop at ECS Tuning | |||
| 07 | Compression spring | 1 | 13110639283 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex nut | 1 | 13111258945 | ENDED | Shop at ECS Tuning | |||||
| 11 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 12 | Kit pump cover | 1 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 14 | Diaphragm | 1 | 13110639362 | $34.31 | Shop at ECS Tuning | |||||
| 14 | Kit pump cover | 1 | 13111709144 | ENDED | Shop at ECS Tuning | |||||
| 15 | Compression spring | 1 | 13110639333 | Shop at ECS Tuning | ||||||
| 16 | Holder | 1 | 13110639198 | ENDED | Shop at ECS Tuning | |||||
| 17 | Set float assy | 1 | 13111709119 | $191.16 | ENDED | Shop at ECS Tuning | ||||
| 18 | Float axis | 1 | 13110639207 | $0.88 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
