Carburetor mounting parts for BMW 1502-2002tii 1602 (1971)

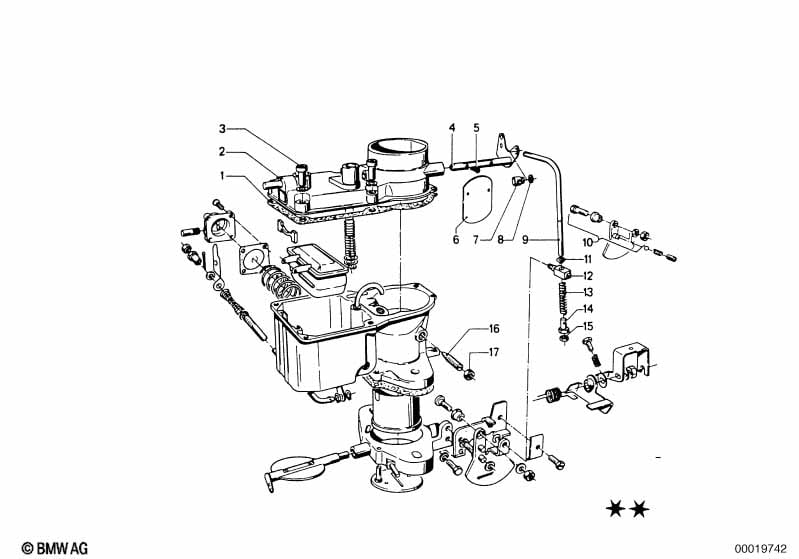

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Gasket | 1 | 13110639161 | $2.94 | Shop at ECS Tuning | |||||
| 02 | Cover carburettor | 1 | 04/1964 | 10/1975 | 13111252180 | ENDED | Shop at ECS Tuning | |||
| 03 | Screw | 5 | 13110639149 | $0.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shaft | 1 | 02/1962 | 10/1975 | 13110439110 | ENDED | Shop at ECS Tuning | |||
| 05 | Screw | 2 | 13110639167 | ENDED | Shop at ECS Tuning | |||||
| 06 | Choke throttle | 1 | 13110639155 | ENDED | Shop at ECS Tuning | |||||
| 07 | Roll pin | 1 | 13111257900 | ENDED | Shop at ECS Tuning | |||||
| 08 | Set circlip 10 | 4,0 | 2 | 07509064292 | ENDED | Shop at ECS Tuning | ||||
| 09 | Set choke rod | 1 | 13111709118 | ENDED | Shop at ECS Tuning | |||||
| 10 | Clamping bolt | 1 | 13119057338 | $6.07 | Shop at ECS Tuning | |||||
| 11 | Lock Ring | 1 | 13110639180 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 12 | Roll pin | 1 | 13110639268 | ENDED | Shop at ECS Tuning | |||||
| 13 | Set choke rod | 1 | 13111709118 | ENDED | Shop at ECS Tuning | |||||
| 14 | Nut | 1 | 13110639292 | ENDED | Shop at ECS Tuning | |||||
| 15 | Nut | 1 | 13110639299 | ENDED | Shop at ECS Tuning | |||||
| 16 | Screw | 1 | 13111257897 | ENDED | Shop at ECS Tuning | |||||
| 17 | Nut | 1 | 13110639211 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
