Carburetor mounting parts for BMW 1502-2002tii 2002 (1973)

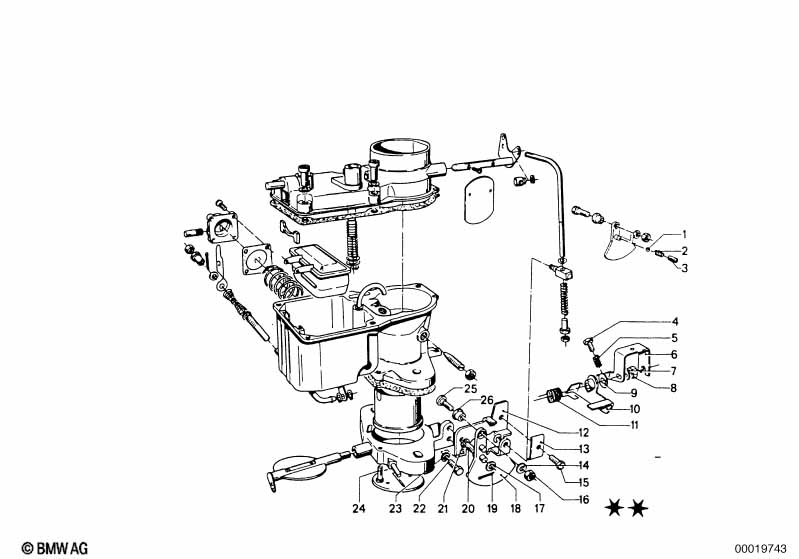

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Ball | 1 | 13110539133 | ENDED | Shop at ECS Tuning | |||||
| 02 | Compression spring | 1 | 13111257789 | ENDED | Shop at ECS Tuning | |||||
| 03 | Screw | 1 | 13111257790 | ENDED | Shop at ECS Tuning | |||||
| 04 | Screw | 1 | 13110539235 | ENDED | Shop at ECS Tuning | |||||
| 05 | Compression spring | 1 | 13110039729 | ENDED | Shop at ECS Tuning | |||||
| 06 | Lever | 1 | 13110439109 | $9.71 | ENDED | Shop at ECS Tuning | ||||
| 07 | Circlip | 1 | 13110539252 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex nut | M8X1 | 1 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 09 | Shim | 1 | 13110539204 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 10 | Driving dog arm | 1 | 13110639111 | ENDED | Shop at ECS Tuning | |||||
| 11 | Retainer spring | 1 | 13111265527 | $2.89 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamp | 1 | 13110639179 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 14 | Washer | 1 | 13110539150 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hex nut | 1 | 13111258945 | ENDED | Shop at ECS Tuning | |||||
| 16 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 13110539135 | ENDED | Shop at ECS Tuning | |||||
| 20 | Set starter level | 1 | 13111709114 | ENDED | Shop at ECS Tuning | |||||
| 23 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Screw | 2 | 13110639157 | ENDED | Shop at ECS Tuning | |||||
| 25 | Clamping bolt | 1 | 13119057338 | $6.07 | Shop at ECS Tuning | |||||
| 26 | Bush | 1 | 13110539175 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Carburetor mounting parts?
- This technical diagram illustrates the Carburetor mounting parts within the Fuel preparation system group for the 1502-2002tii 2002 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Ball (Part #13110539133).
- Which models use the hardware listed in this Carburetor mounting parts?
- The hardware and components featured in the Carburetor mounting parts are specific to the 1502-2002tii 2002 produced during 1973. These technical specifications ensure that parts like the Ball (13110539133) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor mounting parts assembly?
- Each item in the Carburetor mounting parts corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Ball by locating its position on the schematic, which then links to the official BMW part number 13110539133 for the Fuel preparation system section.
