Carburetor mounting parts for BMW 1502-2002tii 2002 (1975)

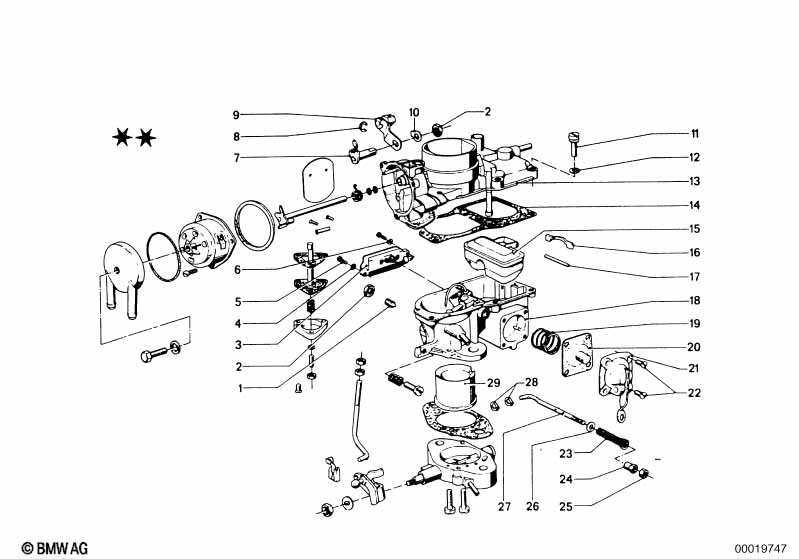

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi/A | |||||||||
| 01 | Screw | 1 | 13111257897 | ENDED | Shop at ECS Tuning | |||||
| 02 | Nut | 2 | 13110639211 | ENDED | Shop at ECS Tuning | |||||
| 03 | Thermo starting-valve | 1 | 13111709128 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wave washer | 1 | 13111253079 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set spring washer 50 | B4 | 1 | 07509063158 | ENDED | Shop at ECS Tuning | ||||
| 07 | Shaft | 1 | 13111252688 | ENDED | Shop at ECS Tuning | |||||
| 08 | Set circlip 10 | 4,0 | 1 | 07509064292 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lever | 1 | 13111252690 | ENDED | Shop at ECS Tuning | |||||
| 10 | Securing plate | 1 | 13111252693 | ENDED | Shop at ECS Tuning | |||||
| 11 | Screw | 5 | 13110639149 | $0.13 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 1 | 13111252689 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cover carburettor | 1 | 07/1968 | 10/1975 | 13111257016 | ENDED | Shop at ECS Tuning | |||
| 14 | Gasket | 1 | 13110639161 | $2.94 | Shop at ECS Tuning | |||||
| 14 | Gasket | 1 | 05/1969 | 10/1975 | 13111257015 | $3.68 | ENDED | Shop at ECS Tuning | ||
| 15 | Set float assy | 1 | 13111709119 | $191.16 | ENDED | Shop at ECS Tuning | ||||
| 16 | Kit pump cover | 1 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 17 | Float axis | 1 | 13110639207 | $0.88 | ENDED | Shop at ECS Tuning | ||||
| 18 | Float chamber | PDSI 40 | 1 | 13111252956 | ENDED | Shop at ECS Tuning | ||||
| 18 | Float chamber | 1 | 07/1968 | 10/1975 | 13111257013 | ENDED | Shop at ECS Tuning | |||
| 19 | Kit pump cover | 1 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 20 | Diaphragm | 1 | 13110639362 | $34.31 | Shop at ECS Tuning | |||||
| 20 | Kit pump cover | 1 | 13111709144 | ENDED | Shop at ECS Tuning | |||||
| 21 | Kit pump cover | 1 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 22 | Kit pump cover | 4 | 13111709124 | $123.88 | ENDED | Shop at ECS Tuning | ||||
| 23 | Compression spring | 1 | 13110639283 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 24 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 25 | Hex nut | 1 | 13111258945 | ENDED | Shop at ECS Tuning | |||||
| 25 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 26 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 27 | Set pump rod | 1 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 28 | Lock Ring | 2 | 13110639235 | ENDED | Shop at ECS Tuning | |||||
| 29 | Venturi | D=30MM | 1 | 13110639113 | ENDED | Shop at ECS Tuning | ||||
