Carburetor-nozzles/gasket set carb. for BMW 1502-2002tii 1602 (1972)

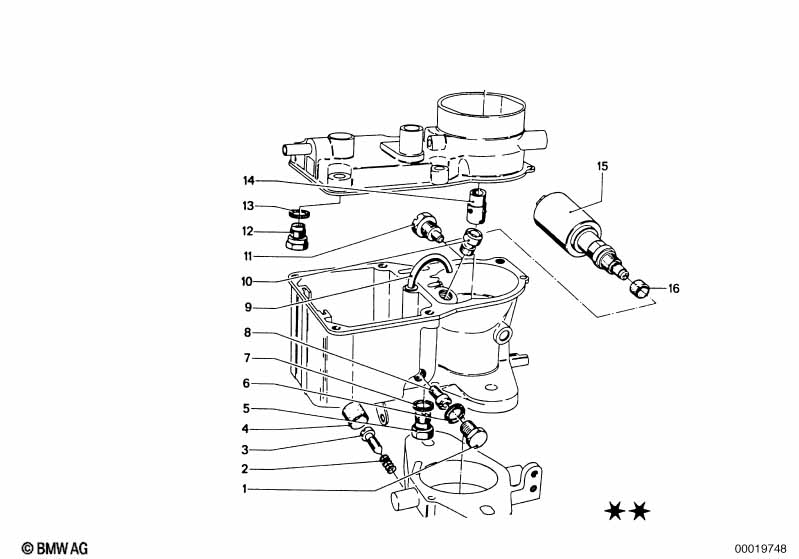

This Carburetor-nozzles/gasket set carb. technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Screw plug | 1 | 13110639182 | $5.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Compression spring | 1 | 13111250707 | $1.85 | ENDED | Shop at ECS Tuning | ||||
| 03 | Idling mixture screw | 1 | 13111265930 | $6.36 | ENDED | Shop at ECS Tuning | ||||
| 05 | Valve | 1 | 03/1966 | 10/1975 | 13111250412 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | 1 | 13110639151 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 07 | Gasket ring | 1 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 08 | Main jet | 130 | 1 | 03/1966 | 10/1975 | 13110639229 | ENDED | Shop at ECS Tuning | ||
| 09 | Injection tube | 80 | 1 | 03/1966 | 07/1977 | 13111256964 | $18.75 | ENDED | Shop at ECS Tuning | |
| 10 | Jet | 1 | 03/1966 | 10/1975 | 13110639125 | ENDED | Shop at ECS Tuning | |||
| 11 | Idling jet | 47,5 | 1 | 03/1966 | 10/1975 | 13110639188 | $12.79 | ENDED | Shop at ECS Tuning | |
| 12 | Float valve assy | 1 | 13111271963 | $27.04 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | 1 | 03/1966 | 07/1977 | 13110539245 | $3.85 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Carburetor-nozzles/gasket set carb.?
- This technical diagram illustrates the Carburetor-nozzles/gasket set carb. within the Fuel preparation system group for the 1502-2002tii 1602 produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Screw plug (Part #13110639182).
- Which models use the hardware listed in this Carburetor-nozzles/gasket set carb.?
- The hardware and components featured in the Carburetor-nozzles/gasket set carb. are specific to the 1502-2002tii 1602 produced during 1972. These technical specifications ensure that parts like the Screw plug (13110639182) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor-nozzles/gasket set carb. assembly?
- Each item in the Carburetor-nozzles/gasket set carb. corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Screw plug by locating its position on the schematic, which then links to the official BMW part number 13110639182 for the Fuel preparation system section.
