Carburetor didta for BMW 1502-2002tii 2002 (1972)

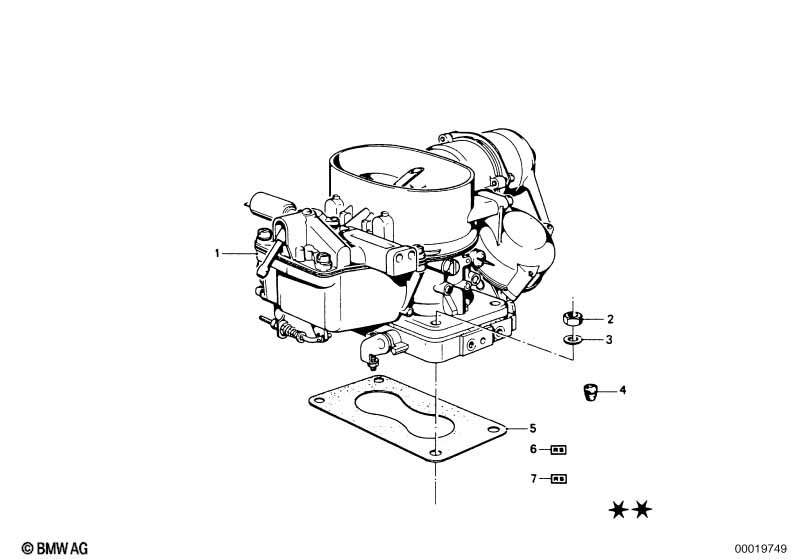

This Carburetor didta technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut wiht flange | M8 | 4 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Plug | 1 | 32212675171 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 13119065691 | $1.80 | Shop at ECS Tuning | |||||
| 06 | Gasket set carburettor | DIDTA | 1 | 13111258880 | $76.97 | Shop at ECS Tuning | ||||
| 07 | Repair kit carburettor | DIDTA | 1 | 04/1971 | 07/1977 | 13111258881 | $81.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
