Carburetor mounting parts for BMW 1502-2002tii 2002 (1970)

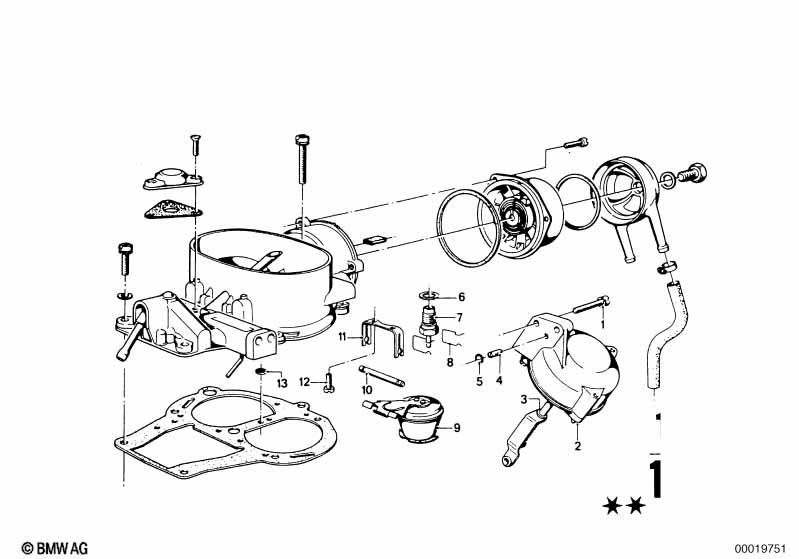

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex Didta | |||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Set fillister head screw 10 | M5X16 | 2 | 07509064340 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | X | 13111261051 | $0.62 | ENDED | Shop at ECS Tuning | ||||
| 04 | Enrichment jet | 1 | 13111257040 | $2.10 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 2 | 13111258966 | ENDED | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 1 | 13111252169 | $2.46 | ENDED | Shop at ECS Tuning | ||||
| 07 | Float valve assy | 1 | 13111258952 | $22.78 | Shop at ECS Tuning | |||||
| 08 | Bow | 1 | 13111258953 | ENDED | Shop at ECS Tuning | |||||
| 09 | Set float assy | 1 | 13111709136 | $83.98 | ENDED | Shop at ECS Tuning | ||||
| 10 | Float axis | 1 | 13111258955 | $1.44 | ENDED | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 13111258954 | ENDED | Shop at ECS Tuning | |||||
| 12 | Fillister head screw | M3X6 | 2 | 13111258886 | ENDED | Shop at ECS Tuning | ||||
| 13 | Strainer | 1 | 13111258957 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
