Carburetor mounting parts for BMW 1502-2002tii 1502 (1976)

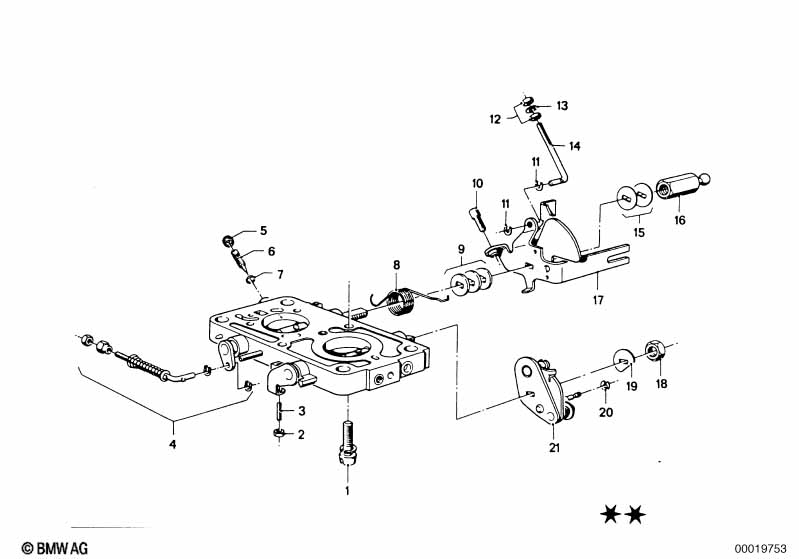

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex Didta | |||||||||
| For vehicles with National version japan and National version sweden |
L807A=Yes =Yes |
|||||||||
| 01 | Fillister-head screw | 2 | 13111258911 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex nut | 1 | 13111258902 | ENDED | Shop at ECS Tuning | |||||
| 03 | Grub screw | 1 | 13111258901 | ENDED | Shop at ECS Tuning | |||||
| 04 | Connection rod | 1 | 13111258941 | ENDED | Shop at ECS Tuning | |||||
| 05 | Blind plug | BLAU | 1 | 13111265508 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Idling mixture screw | 1 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Idling mixture screw | 1 | 13111278354 | $9.10 | ENDED | Shop at ECS Tuning | ||||
| 10 | Grub screw | 1 | 13111265966 | $1.40 | ENDED | Shop at ECS Tuning | ||||
| 11 | Lock Ring | 2 | 13110639180 | $0.70 | ENDED | Shop at ECS Tuning | ||||
| 12 | Set pump rod | 2 | 13111709115 | ENDED | Shop at ECS Tuning | |||||
| 13 | Wave washer | 1 | 13111258946 | Shop at ECS Tuning | ||||||
| 14 | Set choke rod | 1 | 13111709137 | $12.95 | ENDED | Shop at ECS Tuning | ||||
| 15 | Shim | 1 | 13111258905 | ENDED | Shop at ECS Tuning | |||||
| 16 | Ball nut | 1 | 01/1975 | 07/1977 | 13111263333 | ENDED | Shop at ECS Tuning | |||
| 17 | Kit throttle lever | 1 | 01/1975 | 07/1977 | 13111709139 | ENDED | Shop at ECS Tuning | |||
| 18 | Hex nut | M8X1 | 1 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 19 | Circlip | 1 | 13111258908 | ENDED | Shop at ECS Tuning | |||||
| 20 | Circlip | 2,3 | 1 | 07119932805 | $0.28 | Shop at ECS Tuning | ||||
| 21 | Kit lever | 1 | 13111709132 | $32.64 | ENDED | Shop at ECS Tuning | ||||
