Fuel supply/pump/filter for BMW 1502-2002tii 1502 (1977)

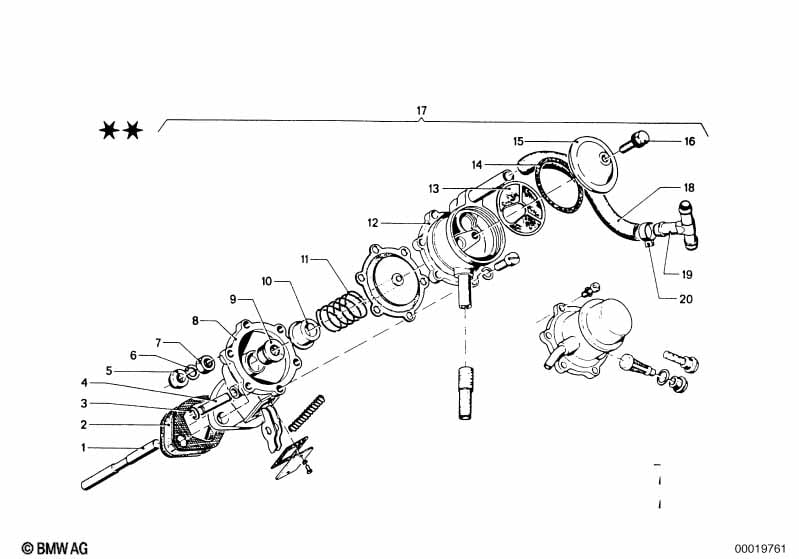

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Push rod | KFST. PUMPE | 1 | 13311250398 | $12.93 | Shop at ECS Tuning | ||||
| 02 | Insulator | AF | 1 | 11111721614 | $6.77 | ENDED | Shop at ECS Tuning | |||
| 03 | Set circlip 10 | 4,0 | 2 | 07509064292 | ENDED | Shop at ECS Tuning | ||||
| 04 | Pin | 1 | 13310075773 | $3.60 | ENDED | Shop at ECS Tuning | ||||
| 05 | Insulating bushing | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 06 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 08 | Housing lower part | 1 | 13310075769 | ENDED | Shop at ECS Tuning | |||||
| 10 | Braket fuel pump | 1 | 13310075767 | ENDED | Shop at ECS Tuning | |||||
| 11 | Compression spring | 1 | 13310680140 | ENDED | Shop at ECS Tuning | |||||
| 13 | Fuel filter | 1 | 13310680125 | ENDED | Shop at ECS Tuning | |||||
| 14 | Gasket ring | 1 | 13118685556 | Shop at ECS Tuning | ||||||
| 15 | Cover | 1 | 13310075762 | ENDED | Shop at ECS Tuning | |||||
| 16 | Screw | 1 | 13310680124 | $1.73 | ENDED | Shop at ECS Tuning | ||||
| 17 | Fuel pump | 1 | 13311252506 | $154.59 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Push rod | 1 | 13311255727 | $5.85 | Shop at ECS Tuning | |||||
| 18 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1502 Fuel supply/pump/filter?
- This technical diagram illustrates the Fuel supply/pump/filter within the Fuel preparation system group for the 1502-2002tii 1502 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Push rod (Part #13311250398).
- Which models use the hardware listed in this Fuel supply/pump/filter?
- The hardware and components featured in the Fuel supply/pump/filter are specific to the 1502-2002tii 1502 produced during 1977. These technical specifications ensure that parts like the Push rod (13311250398) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel supply/pump/filter assembly?
- Each item in the Fuel supply/pump/filter corresponds to the numbered list below the illustration. For the 1502-2002tii 1502, you can identify the Push rod by locating its position on the schematic, which then links to the official BMW part number 13311250398 for the Fuel preparation system section.
