Fuel supply/pump/filter for BMW 1500-2000CS 2000tilux (1968)

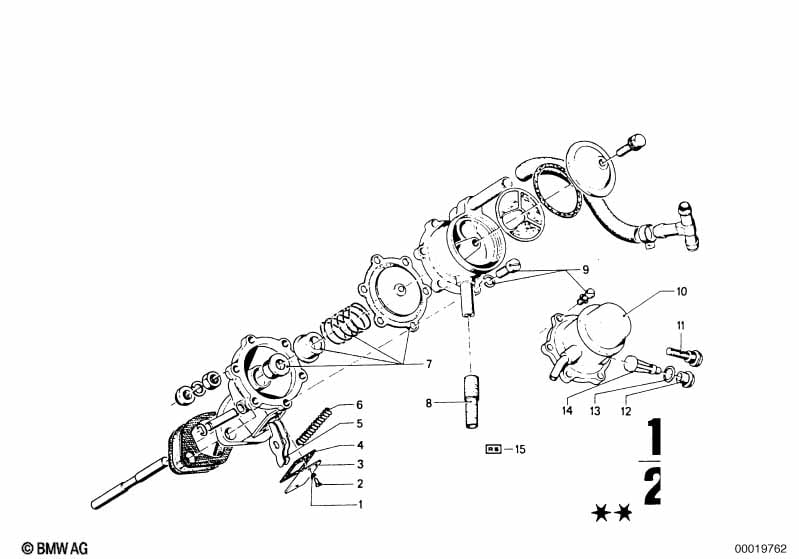

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tilux. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tooth washer | V 3,2 | 2 | 07119936043 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover lid | 1 | 13310075770 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 13310075771 | ENDED | Shop at ECS Tuning | |||||
| 06 | Compression spring | 1 | 13310075775 | $0.94 | Shop at ECS Tuning | |||||
| 07 | Diaphragm | 1 | 13311255181 | $35.36 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reducer | 1 | 16120480125 | $1.48 | Shop at ECS Tuning | |||||
| 09 | Fillister-head screw | 6 | 13310075779 | ENDED | Shop at ECS Tuning | |||||
| 15 | Repair kit fuel pump | 1 | 13311255184 | $68.61 | ENDED | Shop at ECS Tuning |
