Fuel supply/pump/filter for BMW 1502-2002tii 1602 (1973)

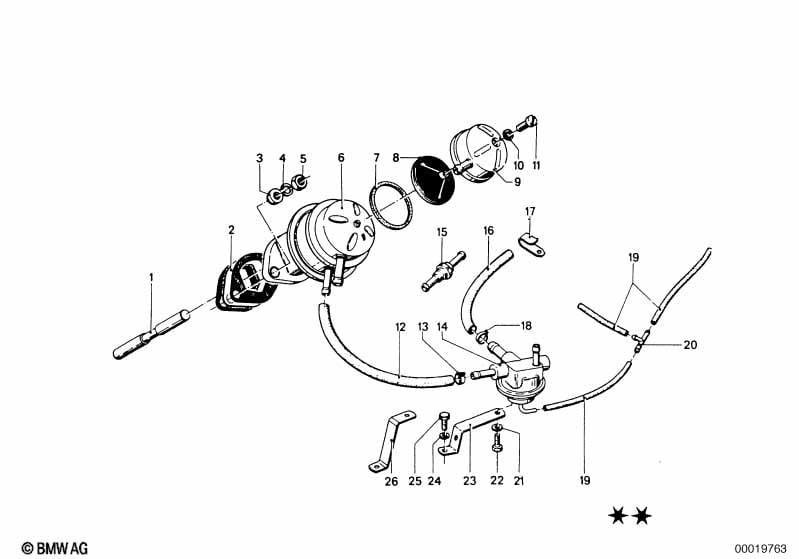

This Fuel supply/pump/filter technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Push rod | 1 | 13311255727 | $5.85 | Shop at ECS Tuning | |||||
| 02 | Insulator | AF | 1 | 11111721614 | $6.77 | ENDED | Shop at ECS Tuning | |||
| 03 | Insulating bushing | 2 | 13310075752 | $1.57 | Shop at ECS Tuning | |||||
| 05 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuel pump | 1 | 03/1971 | 07/1974 | 13311265193 | $104.84 | Shop at ECS Tuning | |||
| 06 | Fuel pump | 1 | 04/1971 | 07/1977 | 13311257784 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | APG | 1 | 13311260982 | $2.19 | ENDED | Shop at ECS Tuning | |||
| 08 | Fuel filter | APG | 1 | 13311260979 | $16.03 | ENDED | Shop at ECS Tuning | |||
| 09 | Cap | APG | 1 | 13311260978 | ENDED | Shop at ECS Tuning | ||||
| 10 | Gasket ring | 1 | 13311260981 | ENDED | Shop at ECS Tuning | |||||
| 11 | Fillister-head screw | 1 | 13311260980 | ENDED | Shop at ECS Tuning | |||||
| 12 | Fuel hose | 6X11MM | X | 13311272750 | $11.62 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L12-15 | 4 | 07129952104 | $1.18 | Shop at ECS Tuning |
