Mechanical fuel injection for BMW 1502-2002tii 2002tii

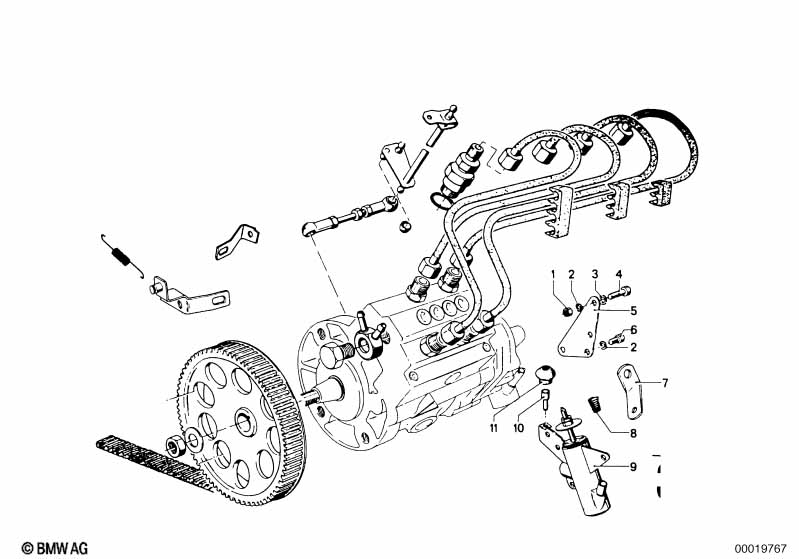

This Mechanical fuel injection technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | A6,4-ZNNIV SI | 1 | 01/1970 | 10/1975 | 07119904202 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 01/1970 | 10/1975 | 07119904116 | $0.38 | Shop at ECS Tuning | ||
| 05 | Holder | 1 | 01/1970 | 10/1975 | 13511256958 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 01/1970 | 10/1975 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 07 | Support | 1 | 11531256301 | ENDED | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 01/1970 | 10/1975 | 13511260192 | ENDED | Shop at ECS Tuning | |||
| 09 | Regulator warm-up-phase | 1 | 01/1970 | 10/1975 | 13511256538 | $495.30 | ENDED | Shop at ECS Tuning | ||
| 09 | AT-warm-up regulator | 1 | 01/1970 | 10/1975 | 13511256543 | ENDED | Shop at ECS Tuning | |||
| 10 | Ball joint | 1 | 13511256077 | ENDED | Shop at ECS Tuning | |||||
| 11 | Covering cap | 1 | 13511257374 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002tii Mechanical fuel injection?
- This technical diagram illustrates the Mechanical fuel injection within the Fuel preparation system group for the 1502-2002tii 2002tii. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07119905543).
- Which models use the hardware listed in this Mechanical fuel injection?
- The hardware and components featured in the Mechanical fuel injection are specific to the 1502-2002tii 2002tii. These technical specifications ensure that parts like the Hex nut (07119905543) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mechanical fuel injection assembly?
- Each item in the Mechanical fuel injection corresponds to the numbered list below the illustration. For the 1502-2002tii 2002tii, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07119905543 for the Fuel preparation system section.
