Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 1502-2002tii 2002 (1971)

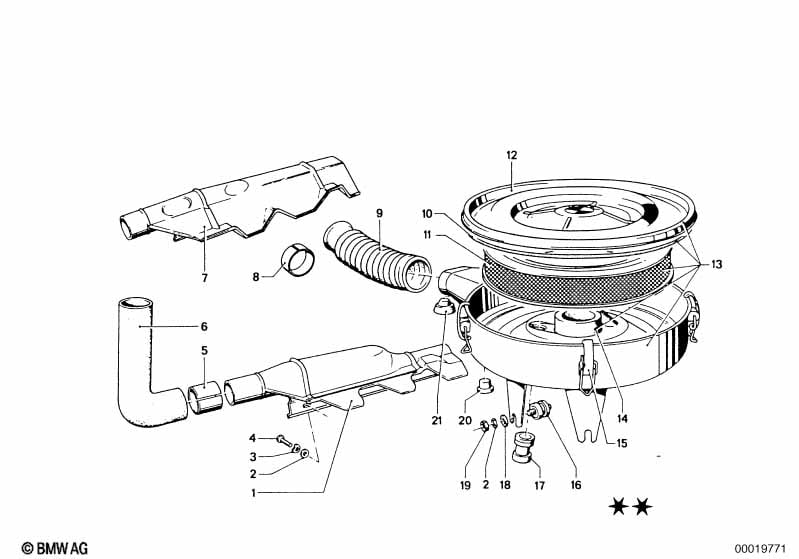

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Protective COVER | 1 | 09/1963 | 07/1977 | 11631252146 | $110.70 | Shop at ECS Tuning | |||
| 02 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Wave washer | B6 | 10 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Ring | 1 | 13730742138 | $9.11 | Shop at ECS Tuning | |||||
| 06 | Air hose | 45X260 | 1 | 13730742139 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 09 | Rubber boot | 1 | 13731258983 | $14.06 | Shop at ECS Tuning | |||||
| 10 | Rubber Ring | 1 | 13711250111 | ENDED | Shop at ECS Tuning | |||||
| 11 | Air filter element | 1 | 13721250795 | Shop at ECS Tuning | ||||||
| 12 | Cover | 1 | 13711250113 | ENDED | Shop at ECS Tuning | |||||
| 13 | Intake muffler | 1 | 13711262612 | ENDED | Shop at ECS Tuning | |||||
| 14 | Rubber grommet | 1 | 13711250115 | ENDED | Shop at ECS Tuning | |||||
| 16 | Vibration damper | 3 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 17 | Rubber grommet | 1 | 13720742125 | ENDED | Shop at ECS Tuning | |||||
| 18 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Rubber buffer | 1 | 13720742126 | $0.89 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
