Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 1502-2002tii 2002 (1971)

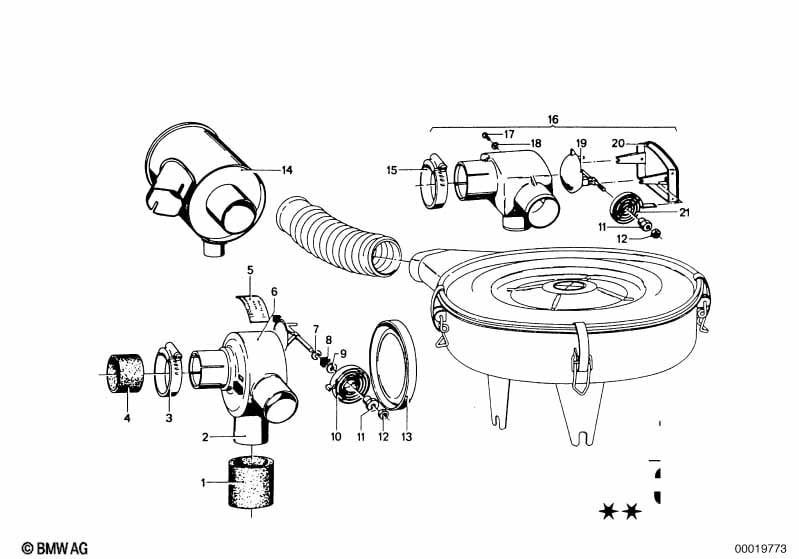

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 11 | Nut | 1 | 03/1966 | 07/1977 | 13730043820 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M5-8-ZNNIV SI | 1 | 03/1966 | 07/1977 | 07119905729 | Shop at ECS Tuning | |||
| 15 | Hose clamp | L59-66 | 1 | 03/1966 | 07/1977 | 07129952125 | $1.64 | Shop at ECS Tuning | ||
| 16 | Regulator housing | 1 | 03/1966 | 07/1977 | 13730742101 | $57.79 | Shop at ECS Tuning | |||
| 17 | Sheet metal screw | B 4,8 X 9,5 | 1 | 03/1966 | 07/1977 | 07119919868 | ENDED | Shop at ECS Tuning | ||
| 18 | Washer | 4-200 HV-ZNS3 | 1 | 03/1966 | 07/1977 | 07119904207 | Shop at ECS Tuning | |||
| 19 | Flap | 1 | 03/1966 | 07/1977 | 13730742106 | ENDED | Shop at ECS Tuning | |||
| 20 | Cover | 1 | 03/1966 | 07/1977 | 13730742136 | ENDED | Shop at ECS Tuning | |||
| 21 | Retainer spring | 1 | 03/1966 | 07/1977 | 13731252907 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
