Intake silencer / Filter cartridge Intake silencer / Filter cartridge for BMW 1502-2002tii 1502 (1976)

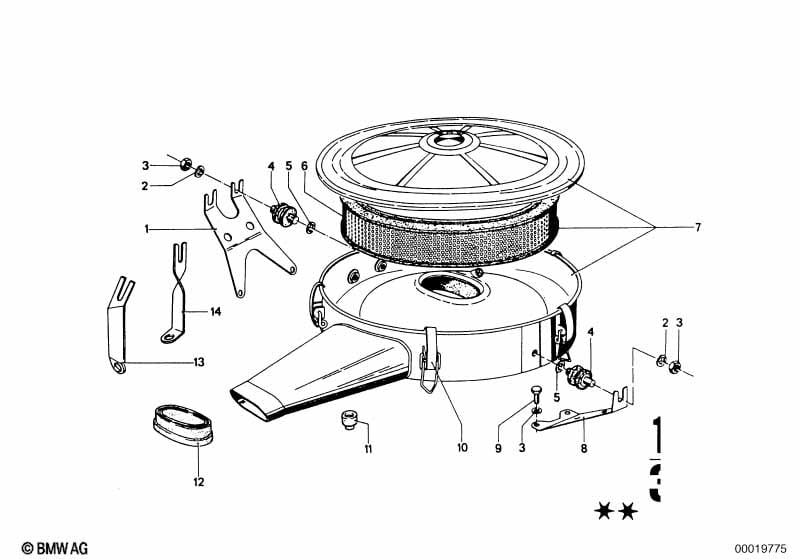

This Intake silencer / Filter cartridge Intake silencer / Filter cartridge technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex Didta | |||||||||
| 02 | Wave washer | B6 | 3 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Vibration damper | 3 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 05 | Washer | A6,4-200HV-ZNS3 | 3 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Air filter element | 1 | 13711265624 | Shop at ECS Tuning | ||||||
| 07 | Intake muffler | 1 | 13721257989 | $198.14 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and National version sweden |
L807A=Yes =Yes |
|||||||||
| 07 | Intake muffler | 1 | 01/1975 | 07/1977 | 13711263509 | ENDED | Shop at ECS Tuning | |||
| 08 | Support air cleaner left | 1 | 13711260818 | $4.33 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Wire-strap | 4 | 13711259495 | $1.32 | Shop at ECS Tuning | |||||
| 11 | Cap | 1 | 13721261095 | ENDED | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 1 | 01/1975 | 07/1977 | 13711263041 | $20.84 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version japan and National version sweden |
L807A=Yes =Yes |
|||||||||
| 13 | Air cleaner bracket front | 1 | 01/1975 | 07/1977 | 13711268253 | $1.23 | ENDED | Shop at ECS Tuning | ||
| 14 | Support air cleaner right | 1 | 01/1975 | 07/1977 | 13711260819 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
