Carburetor mounting parts for BMW 1500-2000CS 1800 (1971)

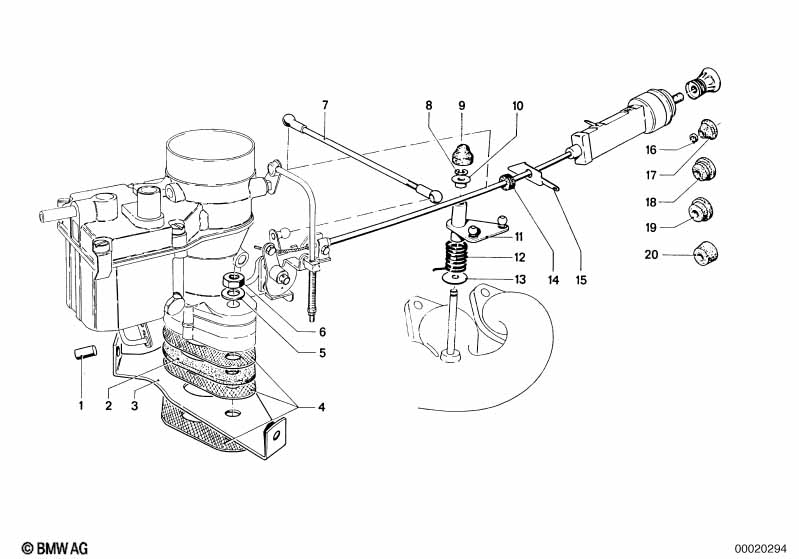

This Carburetor mounting parts technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Solex 38-40 Pdsi | |||||||||
| 01 | Cap | D=3,5MM | 1 | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 02 | Insulator | 1 | 02/1962 | 12/1971 | 13110639025 | $3.60 | Shop at ECS Tuning | |||
| 03 | Support air cleaner | 1 | 13711253441 | $12.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 3 | 02/1962 | 12/1971 | 13119065692 | $3.00 | Shop at ECS Tuning | |||
| 05 | Washer | 8-200-ZNS3 | 2 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 07 | Connection rod | 1 | 13211252007 | $22.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Circlip | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Cap | 1 | 13210642184 | $155.12 | ENDED | Shop at ECS Tuning | ||||
| 10 | Bush | 2 | 13210743138 | ENDED | Shop at ECS Tuning | |||||
| 11 | Lever | 1 | 13210743137 | ENDED | Shop at ECS Tuning | |||||
| 12 | Retainer spring | 1 | 13210642193 | $3.68 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | M | 1 | 13112088552 | $3.52 | Shop at ECS Tuning | ||||
| 15 | Bracket f Bowden cable | 1 | 13238685119 | ENDED | Shop at ECS Tuning | |||||
| 16 | Threaded ring | 1 | 13238685116 | ENDED | Shop at ECS Tuning | |||||
| 19 | Bush | 1 | 07/1968 | 01/1972 | 13231351010 | $1.32 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
