Intake muffler for BMW 1500-2000CS 1800 (1971)

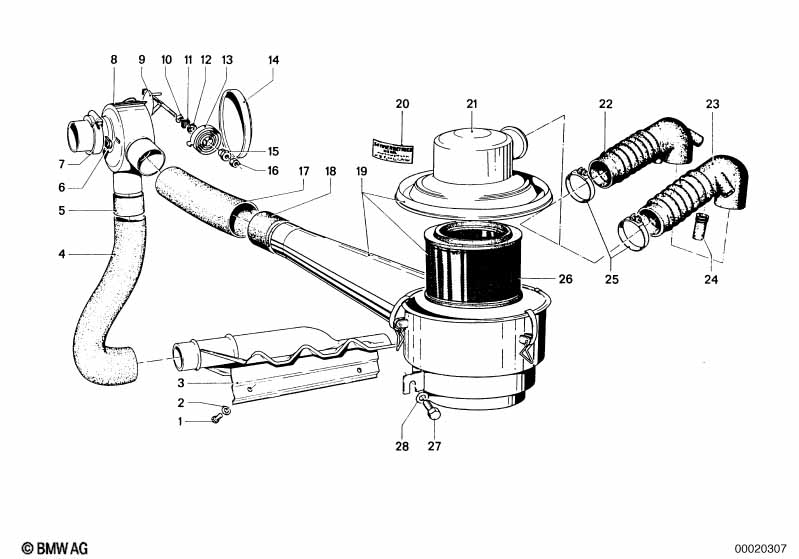

This Intake muffler technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wave washer | B6 | 9 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 04 | Air hose | X | 13734090506 | $17.07 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bushing | 1 | 13720642146 | $1.02 | ENDED | Shop at ECS Tuning | ||||
| 06 | Rubber grommet | 1 | 13730043816 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L=47-54MM | 1 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 17 | Hose | 1 | 13720642149 | ENDED | Shop at ECS Tuning | |||||
| 18 | Bushing | 1 | 13720642147 | ENDED | Shop at ECS Tuning | |||||
| 19 | Intake muffler | 1 | 13720642101 | ENDED | Shop at ECS Tuning | |||||
| 20 | Label | 1 | 51140642124 | ENDED | Shop at ECS Tuning | |||||
| 22 | Air hose | 1 | 13720642165 | ENDED | Shop at ECS Tuning | |||||
| 25 | Hose clamp | L59-66 | 2 | 07129952125 | $1.64 | Shop at ECS Tuning | ||||
| 26 | Air cleaner | 1 | 13720642102 | ENDED | Shop at ECS Tuning |
