Carburetor inat for BMW 2.5CS-3.0CSL 3.0CS (1973)

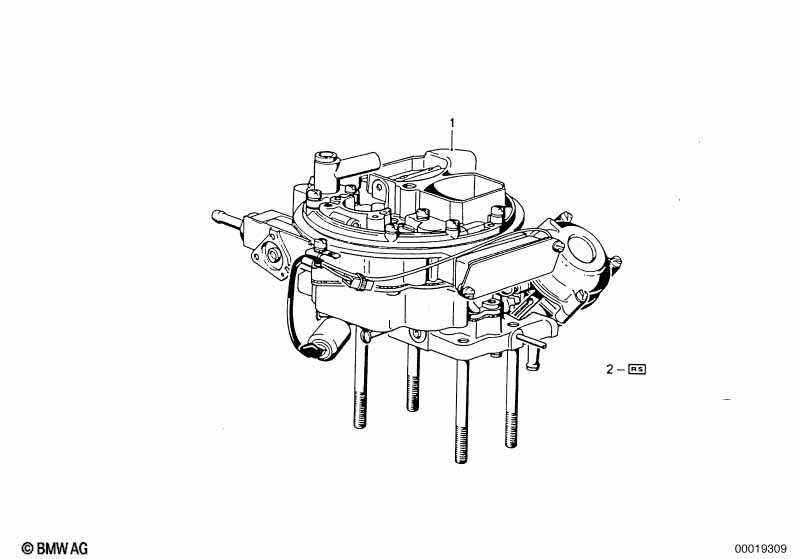

This Carburetor inat technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Repair kit carburettor | INAT | 1 | 10/1973 | 11/1975 | 13111261403 | $169.69 | ENDED | Shop at ECS Tuning | |
| Fg -> 4305358 / 2.5 Cs Fg -> 4315152 / 2.5 Csa Fg -> 4300416 / 3.0 Cs Fg -> 4320528 / 3.0 Csa |
||||||||||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 02 | Gasket set carburettor | INAT | 1 | 10/1973 | 11/1975 | 13111261402 | $48.17 | ENDED | Shop at ECS Tuning | |
| Fg -> 4305358 / 2.5 Cs Fg -> 4315152 / 2.5 Csa Fg -> 4300416 / 3.0 Cs Fg -> 4320528 / 3.0 Csa |
||||||||||
| 02 | Gasket set carburettor | INAT | 1 | 12/1968 | 11/1975 | 13111255741 | $46.33 | Shop at ECS Tuning | ||
| -> Fg 4300416 / 3.0 Cs -> Fg 4320528 / 3.0 Csa |
||||||||||
| 02 | Repair kit carburettor | INAT | 1 | 12/1968 | 11/1975 | 13111255742 | ENDED | Shop at ECS Tuning | ||
| -> Fg 4300416 / 3.0 Cs -> Fg 4320528 / 3.0 Csa |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
