Carburetor-nozzles/gasket set carb. for BMW 2.5CS-3.0CSL 3.0CSL (1973)

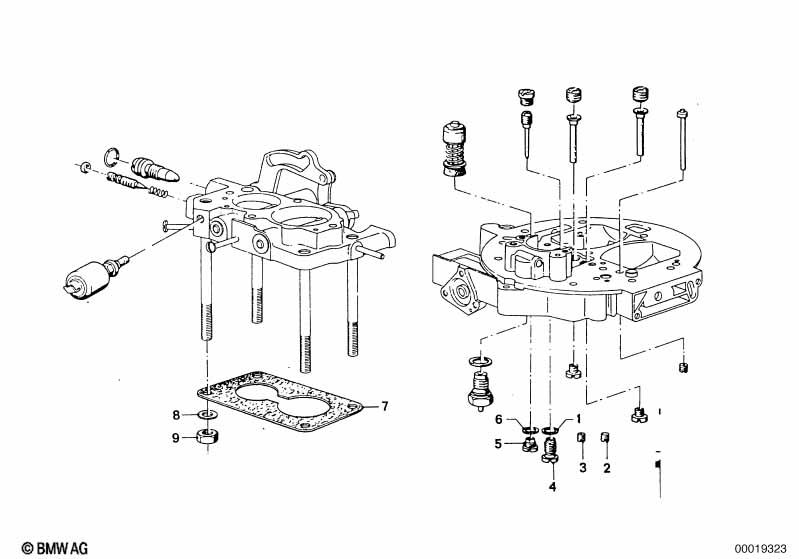

This Carburetor-nozzles/gasket set carb. technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket ring | 2 | 13111253922 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 03 | Screw | 2 | 12/1968 | 11/1975 | 13111253744 | ENDED | Shop at ECS Tuning | |||
| -> Fg 4300416 / 3.0 Cs -> Fg 4320528 / 3.0 Csa |
||||||||||
| 04 | Pump pressure valve | 2 | 13111253068 | ENDED | Shop at ECS Tuning | |||||
| 05 | Pump suctionvalve | 2 | 13111253066 | $12.61 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | 2 | 13111253921 | ENDED | Shop at ECS Tuning | |||||
| 07 | Gasket | 2 | 13111263266 | $3.53 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8-8-ZNS3 | 8 | 11/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
