Carburetor cap/piston/float for BMW 2500-3.3Li 3.0S (1977)

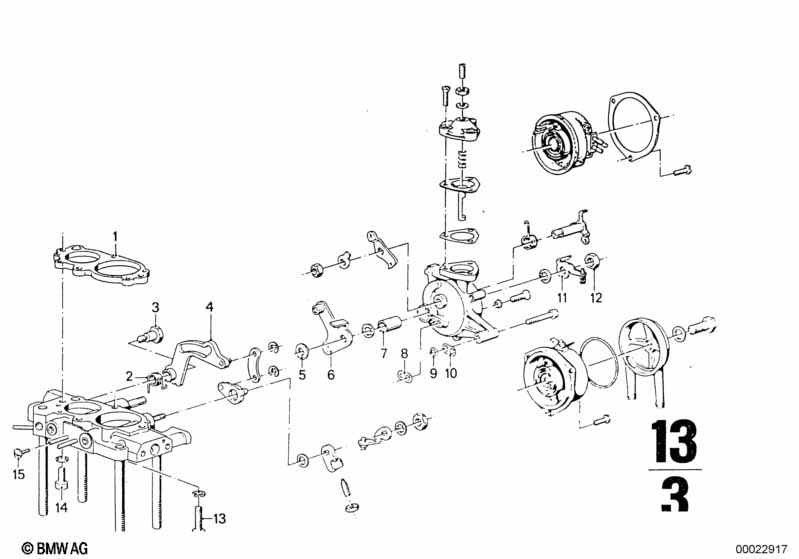

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Retainer spring | 2 | 13111253004 | ENDED | Shop at ECS Tuning | |||||
| 04 | Throttle lever | 2 | 13111253003 | ENDED | Shop at ECS Tuning | |||||
| 05 | Shim | 2 | 13110539204 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 06 | Throttle lever | 2 | 13111253014 | ENDED | Shop at ECS Tuning | |||||
| 07 | Spacer bush | 2 | 13111253016 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket | 2 | 13111253025 | ENDED | Shop at ECS Tuning | |||||
| 10 | Gasket | 2 | 13111253026 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex nut | M8X1 | 2 | 13541267664 | $1.55 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister-head screw | 8 | 13111260426 | ENDED | Shop at ECS Tuning | |||||
| 15 | Fillister head screw | 2 | 13111253001 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Carburetor cap/piston/float?
- This technical diagram illustrates the Carburetor cap/piston/float within the Fuel preparation system group for the 2500-3.3Li 3.0S produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Retainer spring (Part #13111253004).
- Which models use the hardware listed in this Carburetor cap/piston/float?
- The hardware and components featured in the Carburetor cap/piston/float are specific to the 2500-3.3Li 3.0S produced during 1977. These technical specifications ensure that parts like the Retainer spring (13111253004) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carburetor cap/piston/float assembly?
- Each item in the Carburetor cap/piston/float corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Retainer spring by locating its position on the schematic, which then links to the official BMW part number 13111253004 for the Fuel preparation system section.
