Carburetor cap/piston/float for BMW 2500-3.3Li 3.0S (1976)

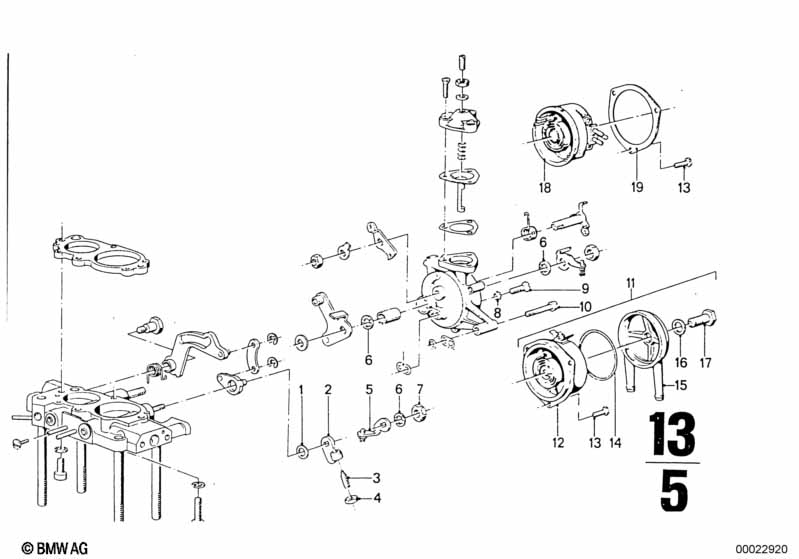

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Washer | 2 | 13111253008 | ENDED | Shop at ECS Tuning | |||||
| 02 | Throttle lever | 2 | 13111253009 | ENDED | Shop at ECS Tuning | |||||
| 03 | Grub screw | 2 | 13111253012 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut | 2 | 13111253013 | ENDED | Shop at ECS Tuning | |||||
| 05 | Lever | 2 | 13111253010 | ENDED | Shop at ECS Tuning | |||||
| 06 | Washer | 6 | 13111253015 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex nut | 2 | 13111253011 | ENDED | Shop at ECS Tuning | |||||
| 08 | Tooth washer | 2 | 13111253027 | ENDED | Shop at ECS Tuning | |||||
| 09 | Countersunk head screw | 2 | 13111253028 | ENDED | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | 2 | 13111261052 | ENDED | Shop at ECS Tuning | |||||
| 11 | Starter lid | 2 | 08/1968 | 02/1977 | 13111257843 | ENDED | Shop at ECS Tuning | |||
| 12 | Starter lid | 2 | 08/1968 | 02/1977 | 13111263693 | ENDED | Shop at ECS Tuning | |||
| 13 | Hex bolt | 6 | 13111253034 | ENDED | Shop at ECS Tuning | |||||
| 14 | O-ring | 2 | 13111252698 | $7.32 | Shop at ECS Tuning | |||||
| 15 | Cover | 2 | 13111252697 | ENDED | Shop at ECS Tuning | |||||
| 16 | Gasket ring | 2 | 13111253435 | $0.86 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | 2 | 13111258883 | ENDED | Shop at ECS Tuning | |||||
| 18 | Starter lid | 2 | 09/1973 | 02/1977 | 13111263693 | ENDED | Shop at ECS Tuning | |||
| 19 | Supporting ring | 2 | 09/1973 | 02/1977 | 13111263694 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
