Carburetor cap/piston/float for BMW 2500-3.3Li 2500 (1977)

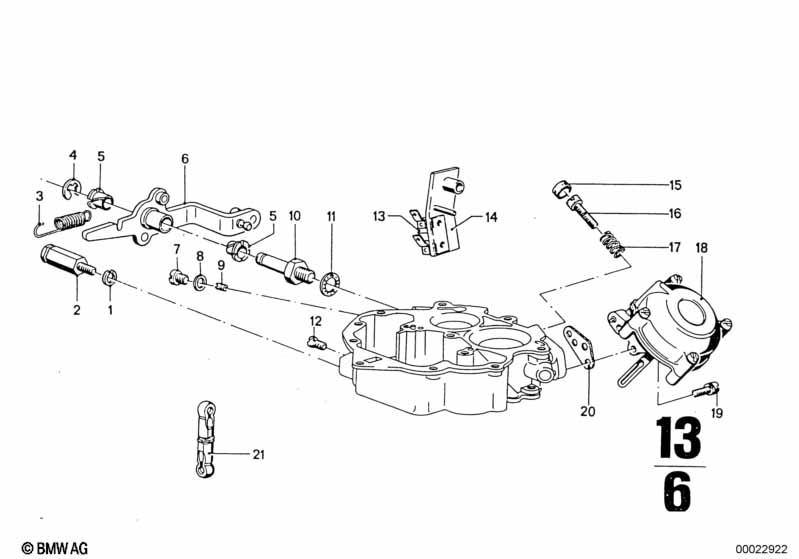

This Carburetor cap/piston/float technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring washer | 2 | 13110539119 | ENDED | Shop at ECS Tuning | |||||
| 02 | Pin | 2 | 13111253045 | ENDED | Shop at ECS Tuning | |||||
| 03 | Tension spring | 2 | 13111253046 | ENDED | Shop at ECS Tuning | |||||
| 04 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 05 | Bushing | 4 | 13111258250 | $4.05 | ENDED | Shop at ECS Tuning | ||||
| 06 | Lever | 2 | 13111258248 | ENDED | Shop at ECS Tuning | |||||
| 11 | Spring washer | 2 | 13111258255 | ENDED | Shop at ECS Tuning | |||||
| 12 | Fillister-head screw | 2 | 13111259625 | ENDED | Shop at ECS Tuning | |||||
| 16 | Adjusting screw | 2 | 13111253048 | ENDED | Shop at ECS Tuning | |||||
| 17 | Compression spring | 2 | 13110639389 | ENDED | Shop at ECS Tuning | |||||
| 19 | Set fillister head screw 10 | M5X16 | 6 | 07509064340 | ENDED | Shop at ECS Tuning | ||||
| 20 | Gasket | 2 | 13111253043 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| 21 | Connection rod | 2 | 13111253047 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
