Carburetor-choke body for BMW 2500-3.3Li 3.0S (1973)

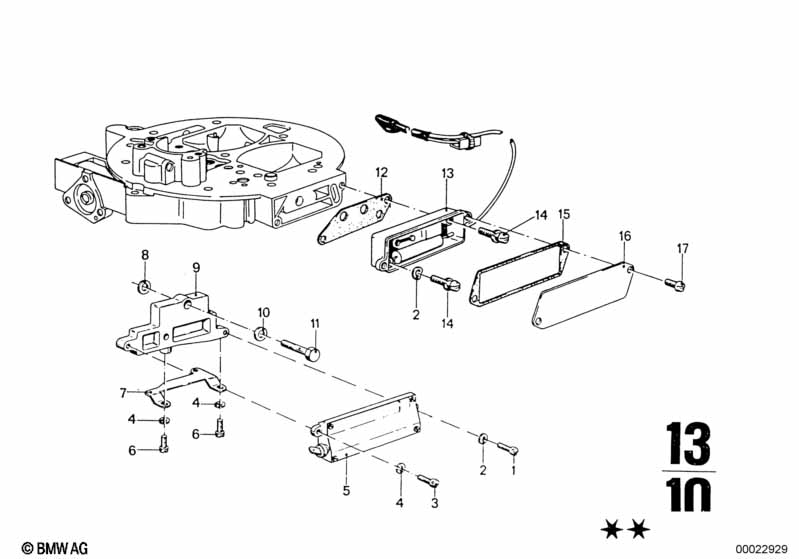

This Carburetor-choke body technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fillister-head screw | M4X12 | 2 | 01/1969 | 02/1977 | 13110539263 | $0.67 | ENDED | Shop at ECS Tuning | |
| 02 | Wave washer | 2 | 01/1969 | 02/1977 | 13111253079 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister-head screw | 2 | 01/1969 | 02/1977 | 13111261054 | ENDED | Shop at ECS Tuning | |||
| 04 | Set spring washer 50 | B4 | 6 | 01/1969 | 02/1977 | 07509063158 | ENDED | Shop at ECS Tuning | ||
| 05 | Thermo starting-valve | 2 | 07/1971 | 02/1977 | 13111709128 | ENDED | Shop at ECS Tuning | |||
| 06 | Fillister-head screw | 4 | 01/1969 | 02/1977 | 13111261053 | ENDED | Shop at ECS Tuning | |||
| 07 | Shackle | 2 | 01/1969 | 02/1977 | 13111253081 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket ring | 2 | 01/1969 | 02/1977 | 13111253435 | $0.86 | Shop at ECS Tuning | |||
| 09 | Holder | 2 | 01/1969 | 02/1977 | 13111253076 | ENDED | Shop at ECS Tuning | |||
| 10 | Gasket ring | 2 | 01/1969 | 02/1977 | 13111253435 | $0.86 | Shop at ECS Tuning | |||
| 11 | Hollow bolt | 2 | 01/1969 | 02/1977 | 13111253077 | ENDED | Shop at ECS Tuning | |||
| 12 | Gasket | 2 | 06/1971 | 02/1977 | 13111260434 | ENDED | Shop at ECS Tuning | |||
| 13 | Thermo starting-valve | 2 | 06/1971 | 02/1977 | 13111260435 | ENDED | Shop at ECS Tuning | |||
| 14 | Fillister-head screw | 4 | 06/1971 | 02/1977 | 13111260436 | ENDED | Shop at ECS Tuning | |||
| 15 | Gasket | 2 | 06/1971 | 02/1977 | 13111260437 | ENDED | Shop at ECS Tuning | |||
| 16 | Covering plate | 2 | 06/1971 | 02/1977 | 13111260438 | ENDED | Shop at ECS Tuning | |||
| 17 | Fillister-head screw | 4 | 02/1969 | 02/1977 | 13111253923 | ENDED | Shop at ECS Tuning |
