Lever-shaft assy for BMW 2500-3.3Li 2500 (1970)

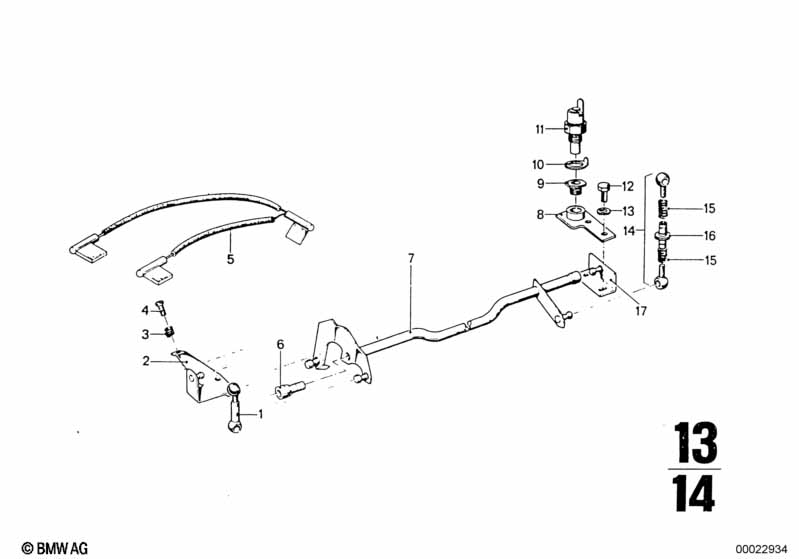

This Lever-shaft assy technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rod | 1 | 13211257406 | $23.66 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting bracket | 1 | 13211251365 | ENDED | Shop at ECS Tuning | |||||
| 03 | Compression spring | 1 | 13211251368 | ENDED | Shop at ECS Tuning | |||||
| 04 | Adjusting screw | 1 | 13211251367 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wiring set | 1 | 01/1969 | 02/1977 | 61121353185 | ENDED | Shop at ECS Tuning | |||
| 06 | Ball joint | 2 | 13211250903 | $1.57 | ENDED | Shop at ECS Tuning | ||||
| 07 | Lever-shaft assy | 1 | 08/1968 | 02/1977 | 13211260377 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 08/1968 | 02/1977 | 07119905524 | $0.27 | Shop at ECS Tuning | ||
| 13 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Rod | 1 | 13211250819 | ENDED | Shop at ECS Tuning | |||||
| 15 | Compression spring | 2 | 13211250821 | ENDED | Shop at ECS Tuning | |||||
| 16 | Adjusting nut | 1 | 13211250820 | ENDED | Shop at ECS Tuning | |||||
| 17 | Supporting bracket | 1 | 13211254285 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
