Fuel pump for BMW 2500-3.3Li 2500 (1971)

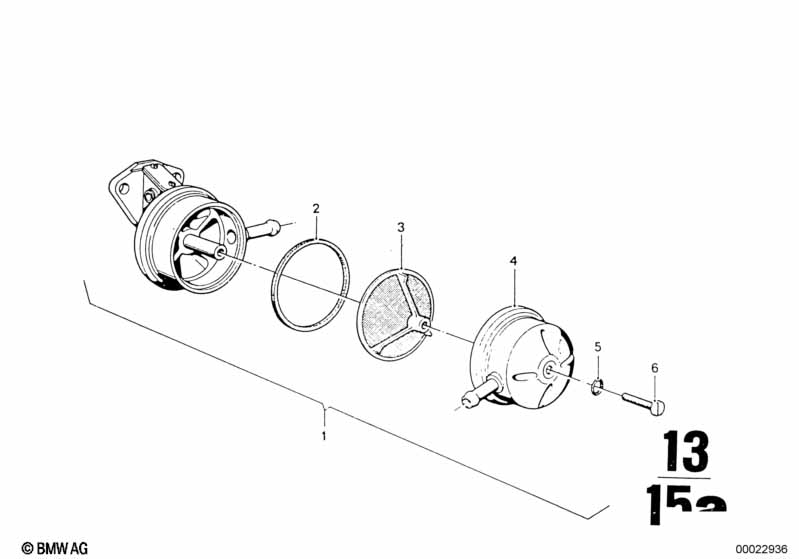

This Fuel pump technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pump | 1 | 13311260677 | $219.99 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket ring | APG | 1 | 13311260982 | $2.19 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuel filter | APG | 1 | 13311260979 | $16.03 | ENDED | Shop at ECS Tuning | |||
| 04 | Cap | APG | 1 | 13311260978 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | 1 | 13311260981 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister-head screw | 1 | 13311260980 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Fuel pump?
- This technical diagram illustrates the Fuel pump within the Fuel preparation system group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pump (Part #13311260677).
- Which models use the hardware listed in this Fuel pump?
- The hardware and components featured in the Fuel pump are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Fuel pump (13311260677) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pump assembly?
- Each item in the Fuel pump corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Fuel pump by locating its position on the schematic, which then links to the official BMW part number 13311260677 for the Fuel preparation system section.
