Air cleaner for BMW 2500-3.3Li 3.0S (1973)

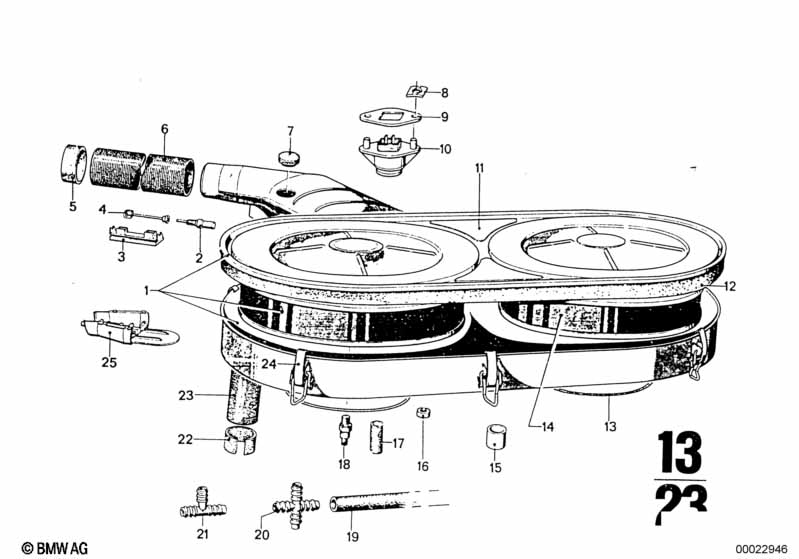

This Air cleaner technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake muffler | 1 | 08/1968 | 02/1977 | 13711259191 | ENDED | Shop at ECS Tuning | |||
| 01 | Intake muffler | 1 | 01/1969 | 02/1977 | 13711257721 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose | 60MM | X | 01/1969 | 02/1977 | 13731257998 | $6.10 | Shop at ECS Tuning | ||
| -- | Cap | D=5,5MM | X | 01/1969 | 02/1977 | 13711254956 | ENDED | Shop at ECS Tuning | ||
| -- | Intermediate ring | X | 01/1969 | 02/1977 | 11621257994 | ENDED | Shop at ECS Tuning | |||
| 01 | Intake muffler | 1 | 09/1973 | 02/1977 | 13711263002 | ENDED | Shop at ECS Tuning | |||
| 06 | Hose | 70MM | 1 | 13731254874 | $15.84 | Shop at ECS Tuning | ||||
| 08 | Clip | 2 | 08/1968 | 02/1977 | 63211355674 | ENDED | Shop at ECS Tuning | |||
| 09 | Gasket | 1 | 09/1973 | 02/1977 | 11741263257 | ENDED | Shop at ECS Tuning | |||
| 10 | Temperature switch | 1 | 09/1973 | 02/1977 | 11741262976 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | 1 | 13711255799 | ENDED | Shop at ECS Tuning | |||||
| 12 | Rubber Ring | 1 | 13711255160 | $17.83 | ENDED | Shop at ECS Tuning | ||||
| 13 | O-ring | 2 | 13711284260 | $4.02 | Shop at ECS Tuning | |||||
| 14 | Air filter element | 2 | 13721250795 | Shop at ECS Tuning | ||||||
| 16 | Self-locking hex nut | M10-10 ZNS3 | 2 | 33326768900 | $0.78 | Shop at ECS Tuning | ||||
| 17 | Hose | 1 | 09/1973 | 02/1977 | 13711263679 | ENDED | Shop at ECS Tuning | |||
| 18 | Screw | 2 | 13711250747 | ENDED | Shop at ECS Tuning | |||||
| 19 | Vacuum hose black | 3,5X1,8 | X | 08/1968 | 02/1977 | 11727545323 | $14.82 | Shop at ECS Tuning | ||
| 20 | Distribution piece | 1 | 08/1968 | 02/1977 | 11731259188 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan or National version Australia |
L807A=Yes L810A=Yes |
|||||||||
| 21 | T-Connector | 1 | 08/1968 | 02/1977 | 11731261489 | $0.56 | Shop at ECS Tuning | |||
| 23 | Hose | 60MM | 1 | 05/1971 | 02/1977 | 13731257998 | $6.10 | Shop at ECS Tuning | ||
| 24 | Wire-strap | 7 | 13711259495 | $1.32 | Shop at ECS Tuning | |||||
| 25 | Expanding element | PUROLATOR | 1 | 05/1971 | 02/1977 | 13711259709 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Air cleaner?
- This technical diagram illustrates the Air cleaner within the Fuel preparation system group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Intake muffler (Part #13711259191).
- Which models use the hardware listed in this Air cleaner?
- The hardware and components featured in the Air cleaner are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Intake muffler (13711259191) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cleaner assembly?
- Each item in the Air cleaner corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Intake muffler by locating its position on the schematic, which then links to the official BMW part number 13711259191 for the Fuel preparation system section.
